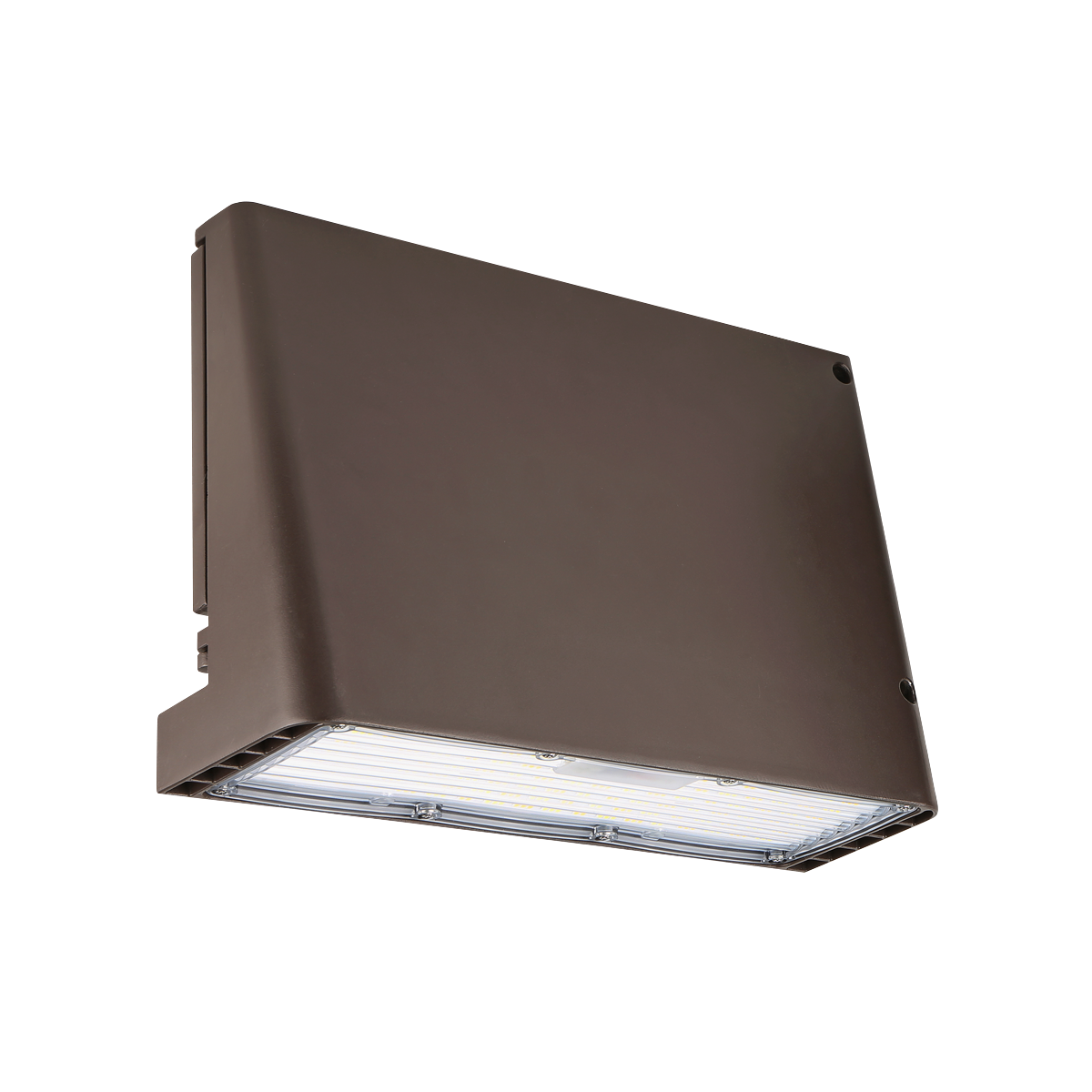

Selectable Full Cutoff LED Wall Pack
|
|

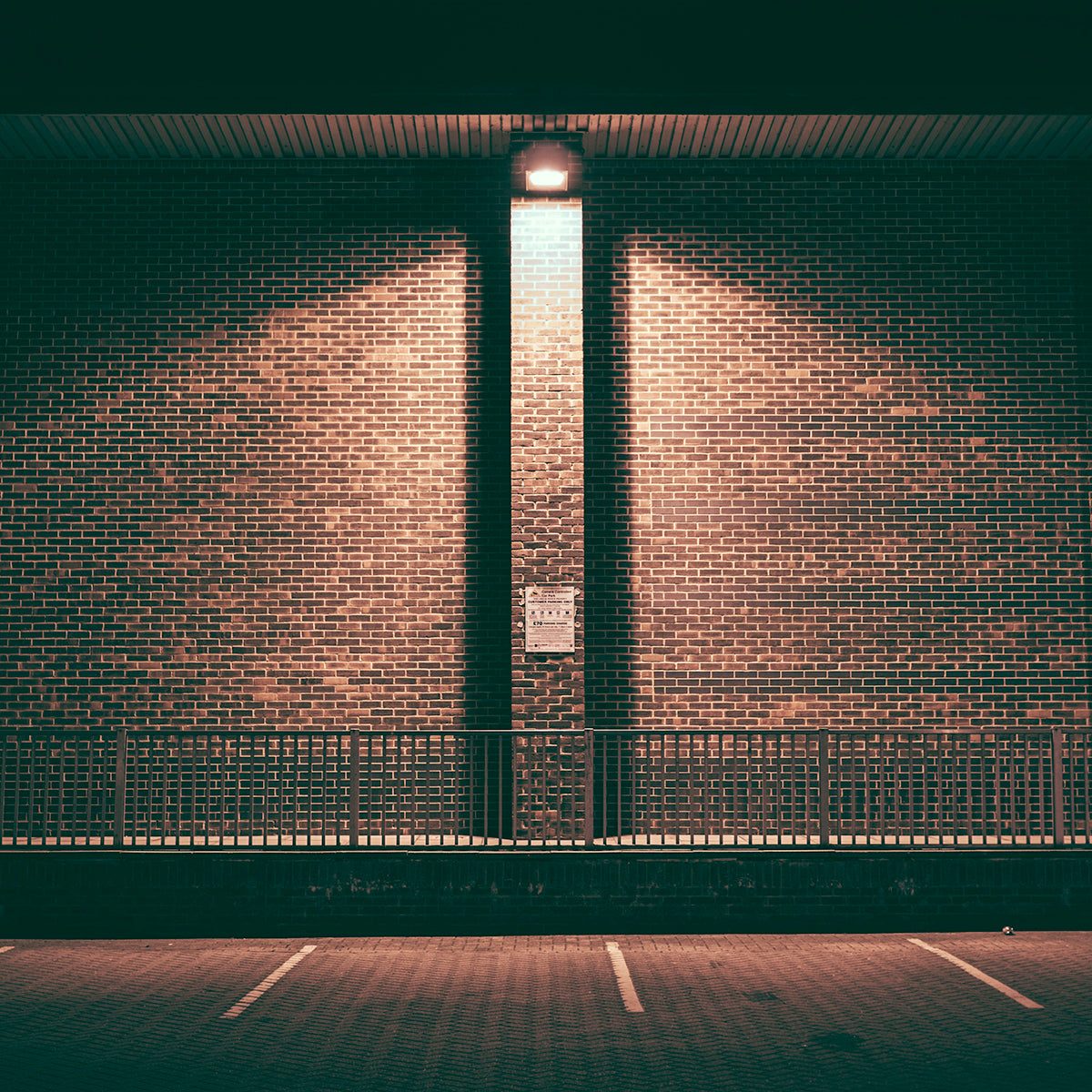

Wherever you need control over your light spill, or where strict adherence to dark sky regulations is required, you want full cutoff LED wall packs. Our wattage- and CCT-selectable full cutoff LED wall packs are perfect for illuminating entrances, walkways, and other areas where focused downward lighting is required, without contributing to light trespass into unwanted areas, such as into nearby windows or into the night sky.
Field-Selectable for Versatility and Savings
Our lower-power model can be set to operate at 15W, 23W, 30W, or 38W, depending on the needs of each individual mounting location. These settings provide light output equivalent to 50W to 125W metal halide lamps, at just one third the energy cost.
The higher-power model can be set to 40W, 60W, 80W, or 100W, which is equivalent to 125W to 400W of metal halide light output, but again at just a fraction of the operating cost.

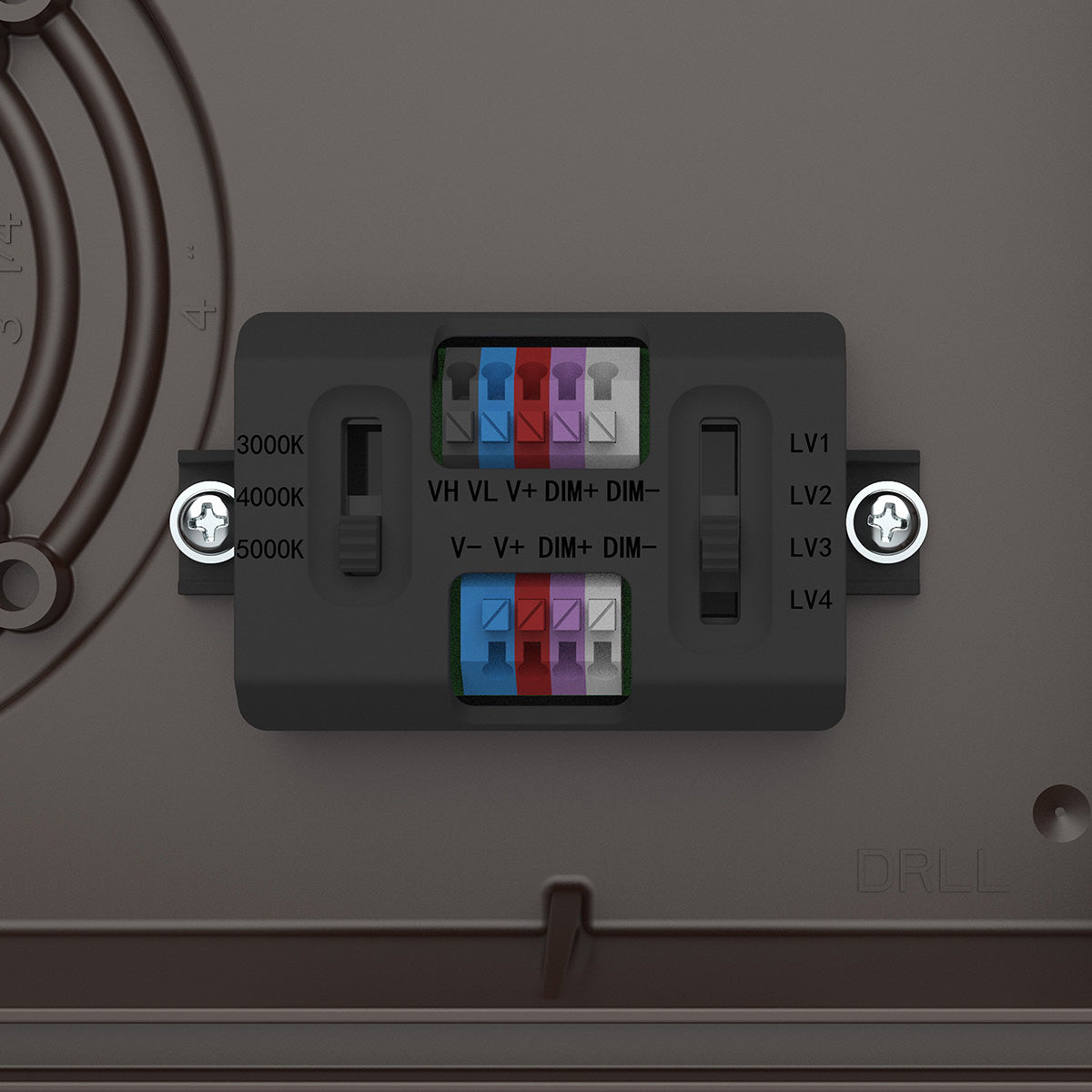

Both wall packs are CCT-selectable: using a simple dip switch, your installer can set each fixture's color temperature to a neutral 4000K white, a warmer 3000K, or a cooler 5000K. This provides the flexibility to create a warm, welcoming ambiance at the front of a building, and clear security lighting at the back, for instance, while taking advantage of bulk pricing discounts available for larger orders of the same fixture model.
Construction & Design of Our Full Cutoff LED Wall Packs

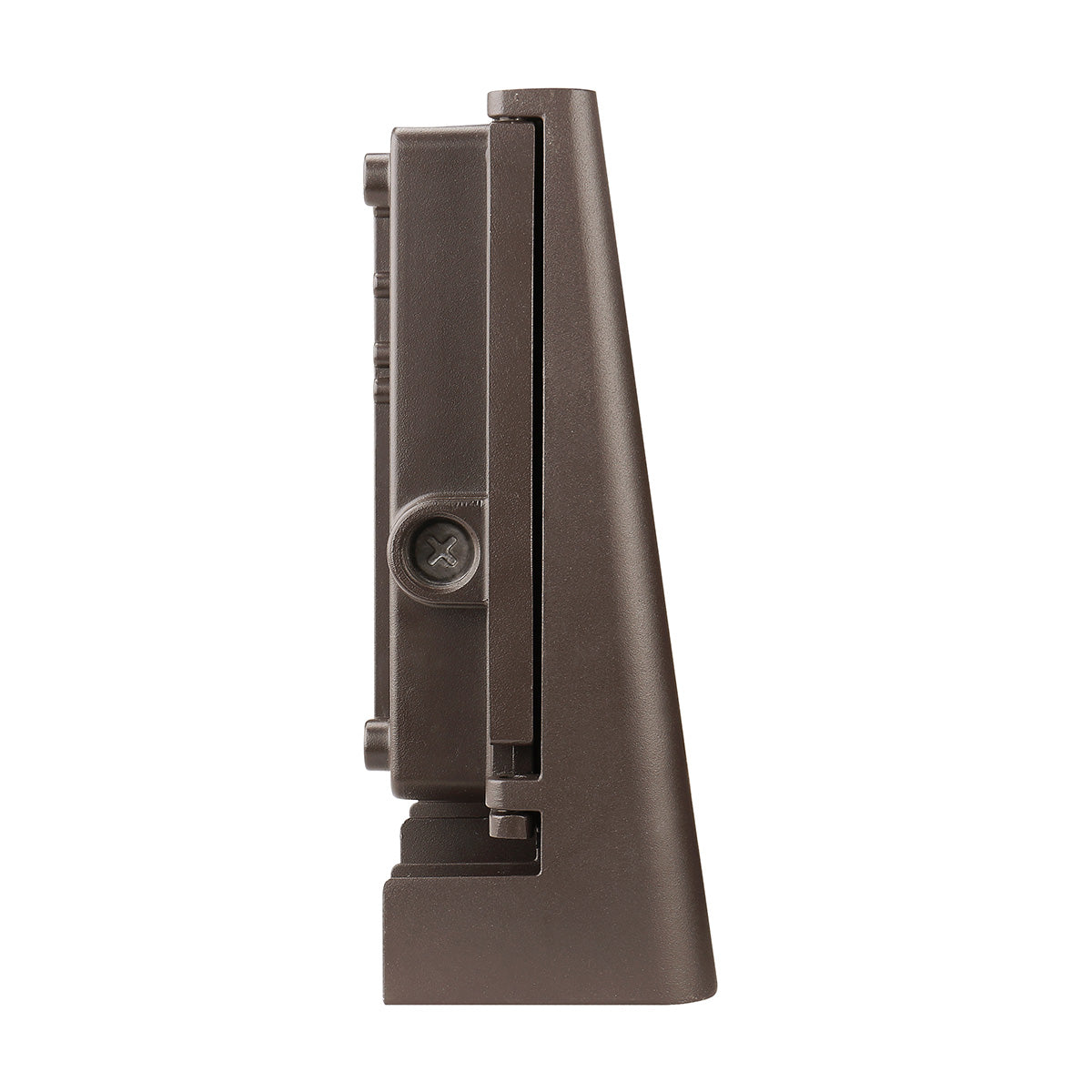

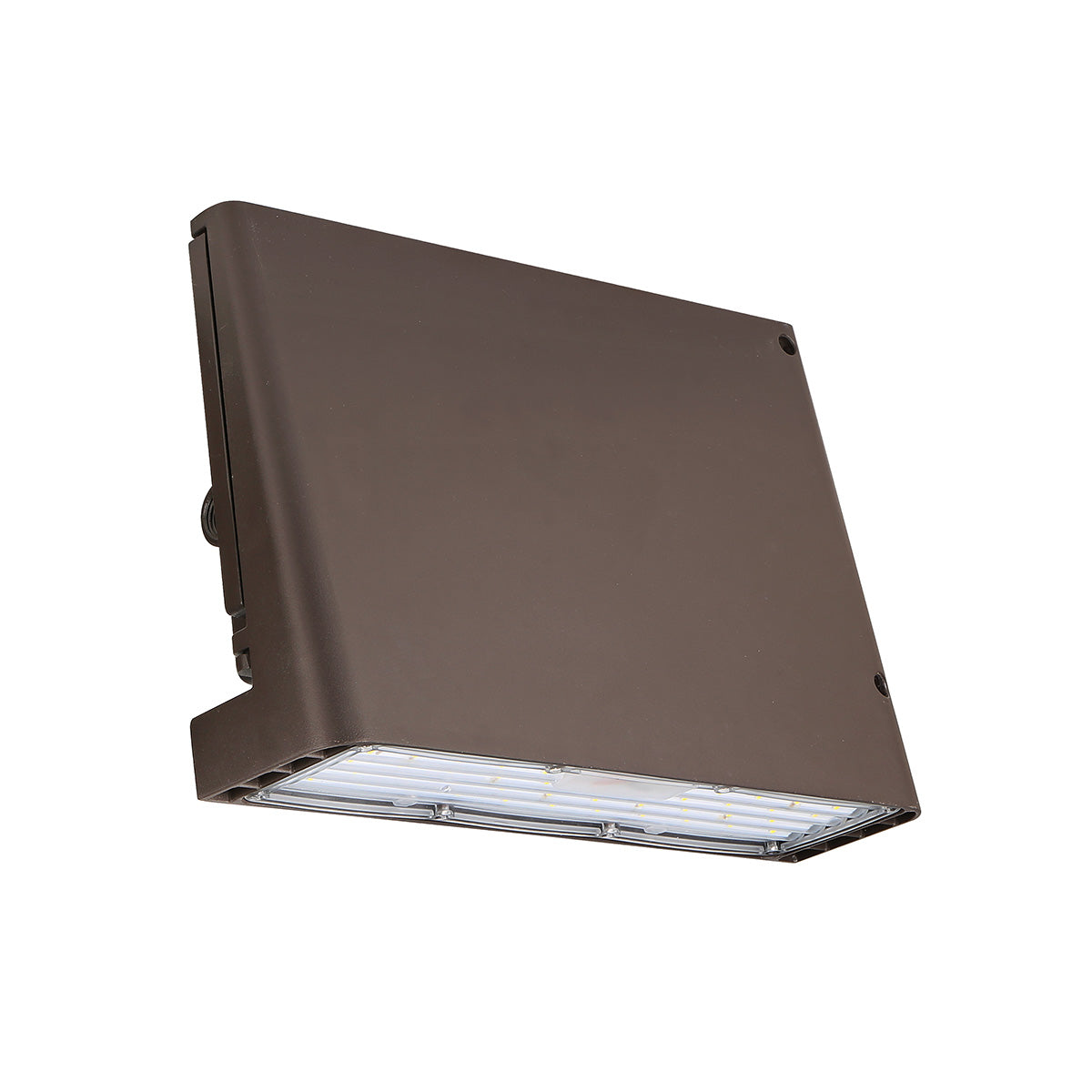

- These built-tough fixtures feature a sturdy die-cast aluminum housing
- They are UL-Certified for use in wet locations
- Their prismatic translucent lens is anti-UV for longevity
- Full-cutoff design ensures zero uplight distribution for dark sky compliance
- Replaces HID with about 66% energy savings
- Includes 1-10V dimming capability
- Operaties in temperatures down -40˚F
Overall, you can expect an estimated lifespan of 50,000 operating hours from these full cutoff LED wall packs, based on IES LM-80 results and TM-21 calculations. A 5-year warranty is included and backed by ELEDLights' responsive customer support team.

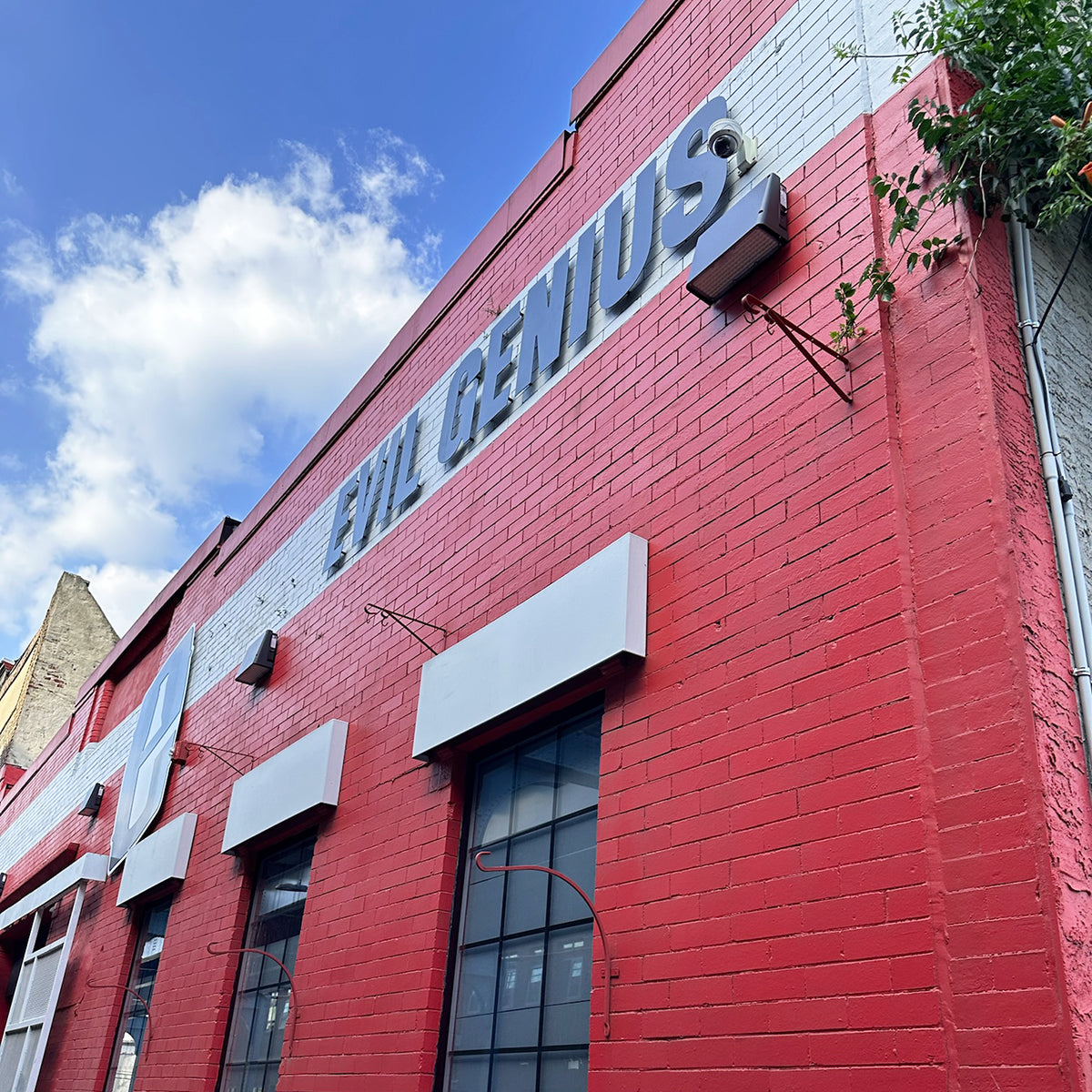

Brighten your walkways, egresses, and other outdoor areas around your commercial buildings with our full cutoff, wattage and CCT selectable LED wall pack lighting
Light Output Tables
38W MODEL | LIGHT OUTPUT PER COLOR TEMPERATURE SETTING | ||
POWER SETTING | 3000K | 4000K | 5000K |
100% | ~ 5,615 lumens | ~ 6,015 lumens | ~ 5,690 lumens |
80% | ~ 4,560 lumens | ~ 4,885 lumens | ~ 4,870 lumens |
60% | ~ 3,390 lumens | ~ 3,630 lumens | ~ 3,695 lumens |
40% | ~ 2,485 lumens | ~ 2,665 lumens | ~ 2,785 lumens |
100W MODEL | LIGHT OUTPUT PER COLOR TEMPERATURE SETTING | ||
POWER SETTING | 3000K | 4000K | 5000K |
100% | ~ 15,270 lumens | ~ 15,500 lumens | ~ 14,950 lumens |
80% | ~ 12,460 lumens | ~ 13,050 lumens | ~ 12,725 lumens |
60% | ~ 9160 lumens | ~ 9,595 lumens | ~ 9,540 lumens |
40% | ~ 6335 lumens | ~ 6,635 lumens | ~ 6,660 lumens |
Wattage(s) | 38W, 100W, both adjustable to 100%, 80%, 60%, or 40% output during install |
Light Output |
38W: 6,600lm 100W: 15,500 lm |
Luminous Efficacy (lm/W) |
38W: 147 lm/W (3000K), 158 lm/W (4000K), or 150 lm/W (5000K) 100W: 148 lm/W (3000K), 155 lm/W (4000K), or 150 lm/W (5000K) |
Average Lamp Life | 50,000 hours |
Color Temperature(s) | 3000K, 4000K, 5000K - User selectable during install |
CRI | 70 |
Dimming | 1-10V |
Base Type | Fixture |
Working Environment | Outdoor |
Light Type | Wired Fixture |
Input Voltage | 120-277 VAC |
Temperature Rating | -40°F – 104°F |
Housing Material | Die cast aluminum |
Housing Color | Bronze |
Qty in Package | 1 |
Dimensions |

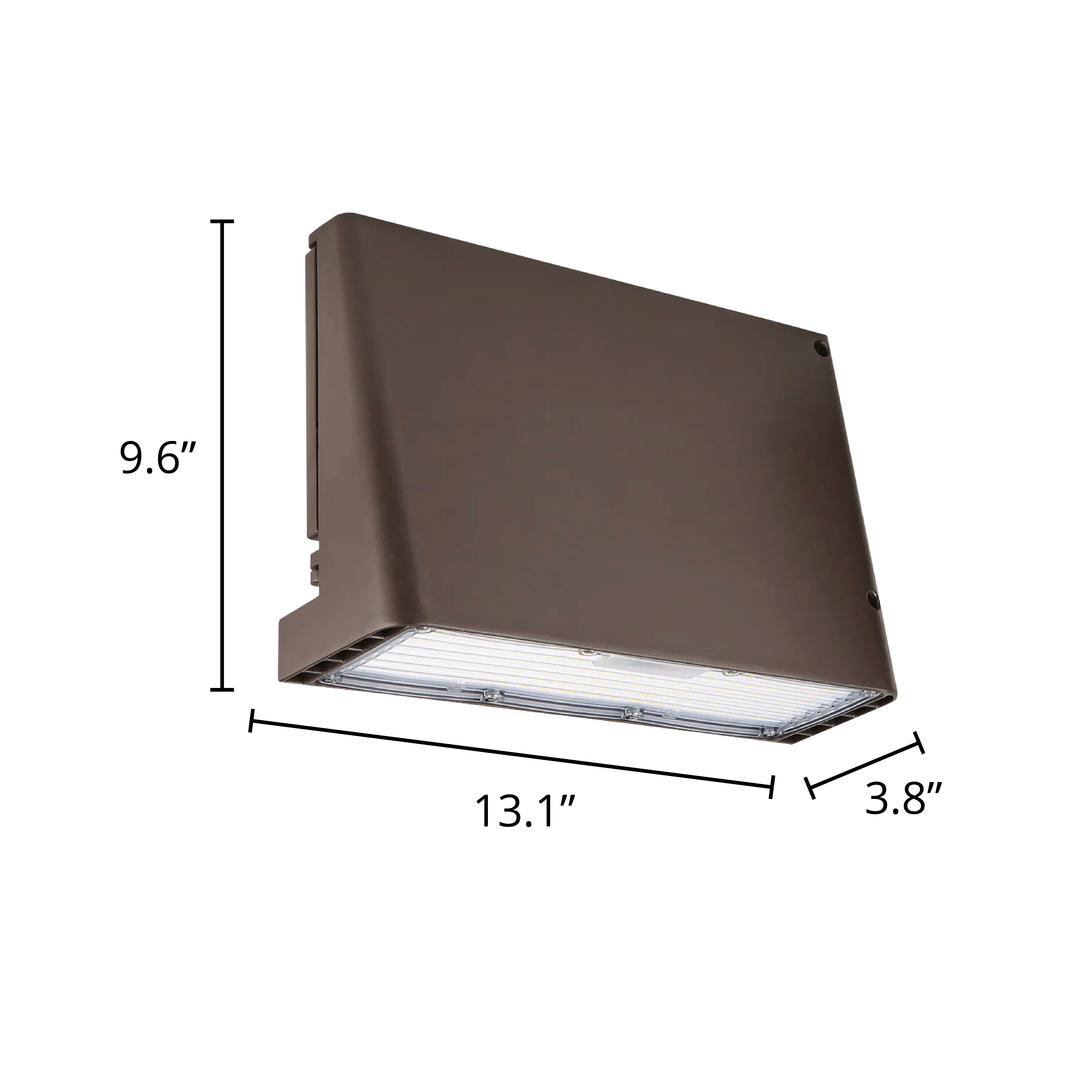

38W: 13.1"W x 3.8" D x 9.6" H 100W: 13.2"W x 5" D x 9.6" H |
Certification | cUL for 100W, DLC 5.1, UL Wet Location |
Warranty | 5 Years |
