Saves $/year in energy costs*
|
|
Key Features
Sleek, Upscale Design
Snap-Fit, No-Hardware Faceplate
Easy-Apply Direction Indicators
Architectural, Edge-Lit Exit Signs
- Modern, Thin-Profile Housing: High-polish, injection-molded virgin acrylic that is ultrasonically welded to eliminate visible hardware.
- Flexible Install: Mount from the top, side, or back; pivots for installations on sloped ceilings.
- Easy-Apply Direction Indicators: Chevrons are included to customize the sign to your needs.
Configurations Available:
Single or Double-Sided
Double-sided configurations have a mirror divider.

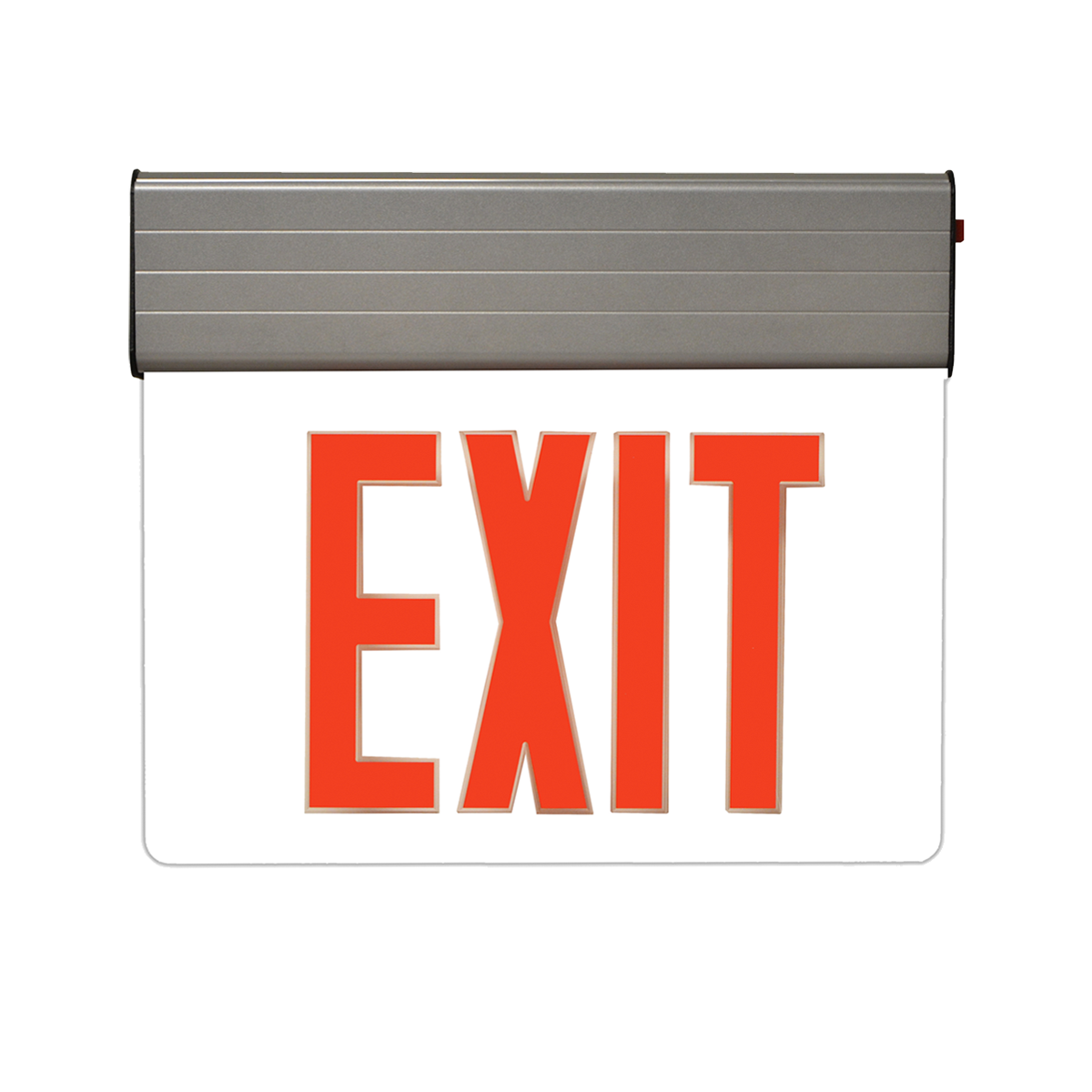

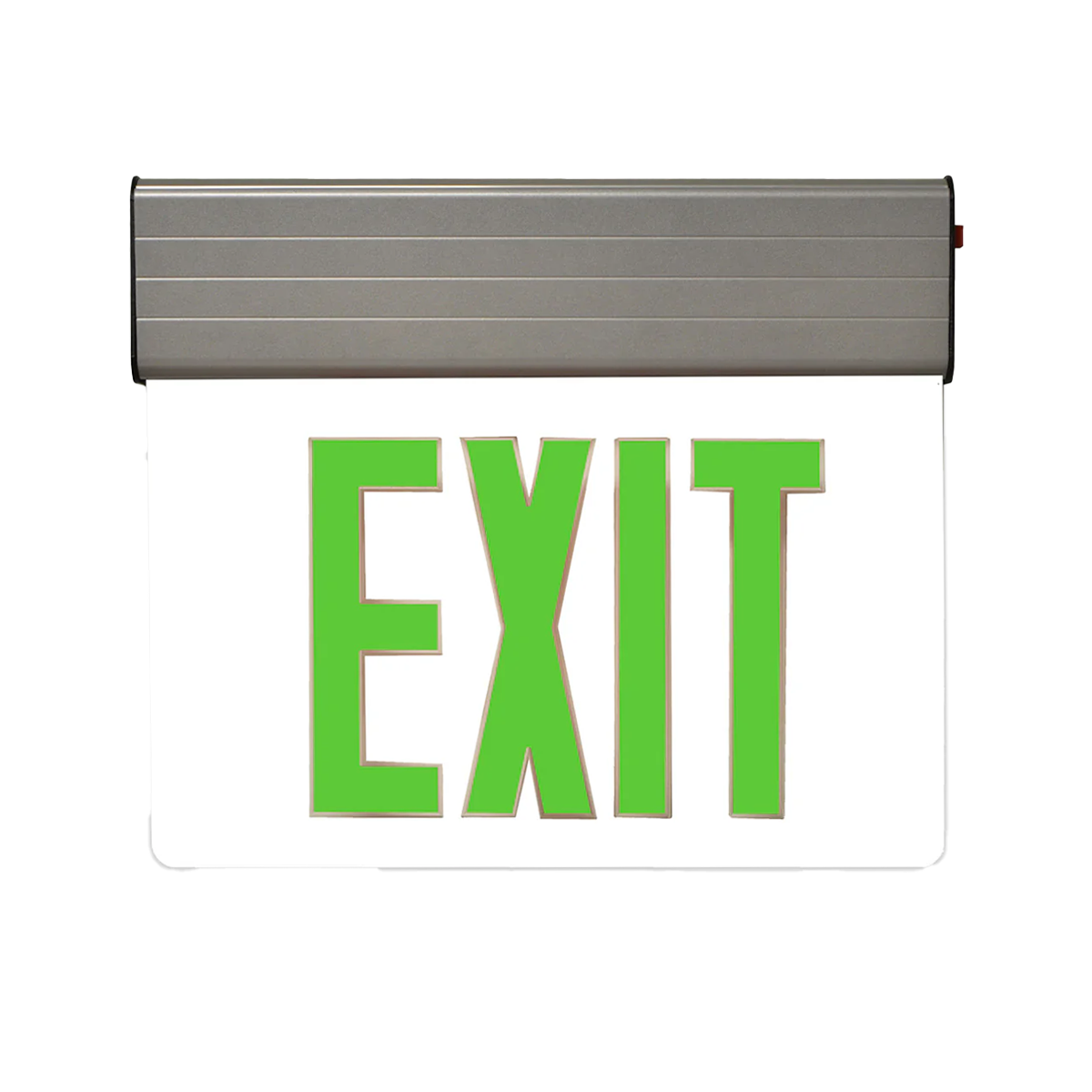

Red or Green Letters
Graduated depth of molded letters provides uniform light distribution on graphics.
Manufacturer | |
Installation | Included mounting bracket allows installation via top, side, or back of exit sign. |
Working Environment | Indoors |
Enclosure Rating | UL924 Listed for Damp Locations (DL) |
Input Voltage | 120V/277V |
Temperature Rating | 20°C - 30°C (68°F - 104°F) |
Housing Material | Injection-molded virgin acrylic |
Qty in Package | 1 |

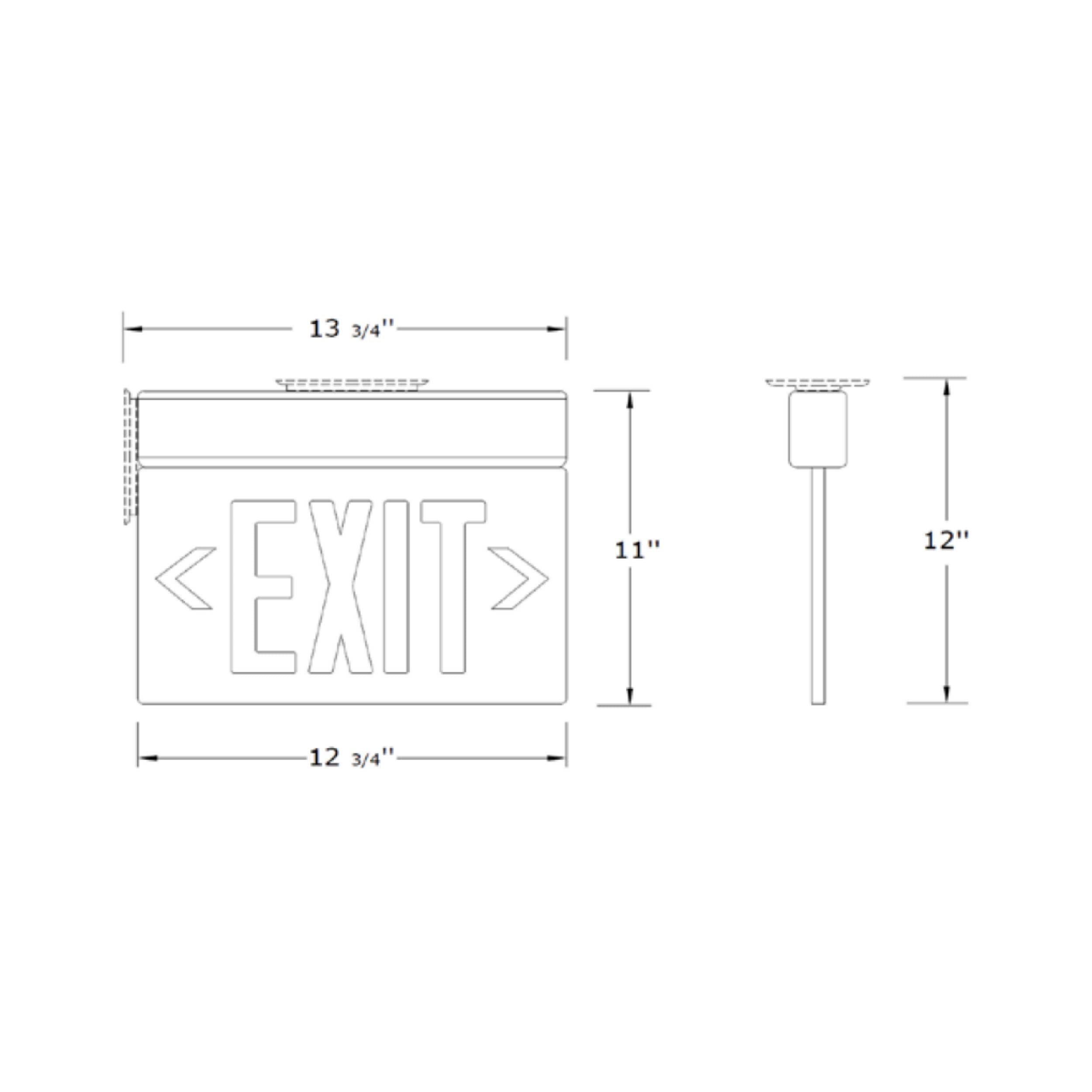

Dimensions | 12.75" W x 11" H. Mounting bracket adds another inch to top or side. |
Warranty | 5 Years |
