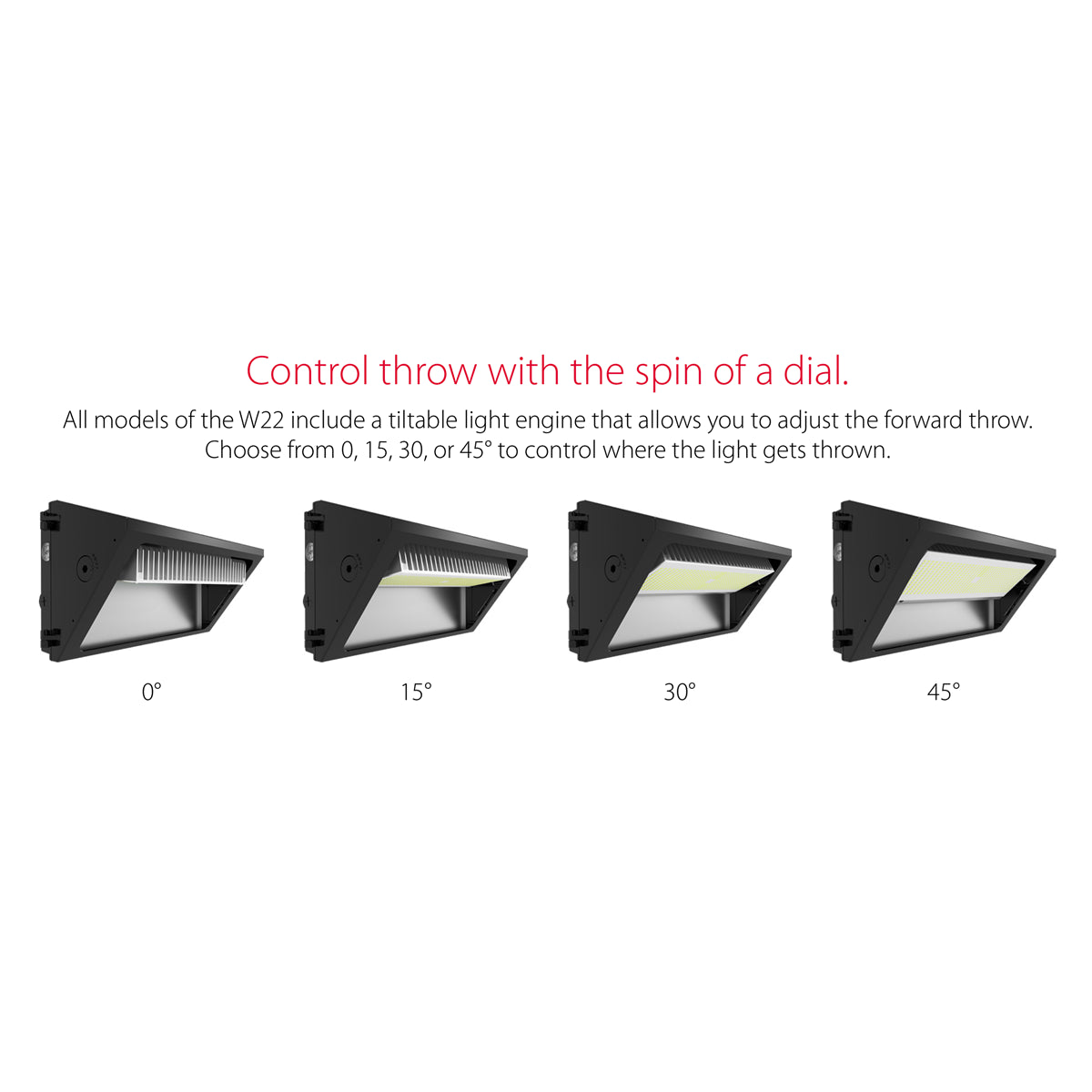

RAB W22 adjustable throw: a dial tilts the light engine to 0, 15, 30 or 45 degrees to control where light lands
Side view of the RAB W22 wall pack showing the photocell, mounting tabs and angled lens
RAB Lighting

60W Selectable RAB W22 Semi Cutoff Adjustable Forward Throw LED Wall Pack

SKU: W22-M-60
Sale price$179.00
Regular price

RAB's W22 wall packs give you unprecedented control over where your light lands and how it looks. The distinctive adjustable forward throw can be set to maximum projection (45°) for storefronts or small parking lots, a tight 0° for full cutoff, or somewhere in between, ensuring you get the right light for your site without spilling light onto neighboring properties.

  • Adjustable wattage, CCT, & throw allow you to keep a consistent look across your building while each wall gets exactly the light it needs
  • Delivers up to 9,105 lumens and mounts anywhere from 15 to 30 ft high, a strong choice for retail buildings, smaller commercial sites, and light industrial properties
  • A built-in photocell enables automatic dusk-to-dawn operation, and a -40°F cold-start rating keeps it running through harsh winters
Contractor or Large Project? Request Project Pricing
Ships in 2-3 business days
Free Shipping Over $500

RAB's W22 wall packs give you unprecedented control over where your light lands and how it looks. The distinctive adjustable forward throw can be set to maximum projection (45°) for storefronts or small parking lots, a tight 0° for full cutoff, or somewhere in between, ensuring you get the right light for your site without spilling light onto neighboring properties.

  • Adjustable wattage, CCT, & throw allow you to keep a consistent look across your building while each wall gets exactly the light it needs
  • Delivers up to 9,105 lumens and mounts anywhere from 15 to 30 ft high, a strong choice for retail buildings, smaller commercial sites, and light industrial properties
  • A built-in photocell enables automatic dusk-to-dawn operation, and a -40°F cold-start rating keeps it running through harsh winters

Specs

Wattage(s) 30W/40W/50W/60W
Replaces Wattage(s) 150W-250W
Light Output @3000K, default 45° cutoff angle:
4,448/5,854/7,193/8,429 lumens
@4000K, default 45° cutoff angle:
4,733/6,230/7,655/8,970 lumens
@5000K, default 45° cutoff angle:
4,805/6,323/7,770/9,105 lumens
Luminous Efficacy (lm/W) Up to 161.5 lm/W
Average Lamp Life L70: 100,000 hours
Color Temperature(s) 3000K/4000K/5000K
CRI (Color Accuracy) 82-85
Dimming 0-10V (10%-100%)
Lens Cover Glass
Installation Surface mount for recessed junction box; 3 conduit entry points
Recommended Installation Height 15 to 30 ft
Enclosure Rating IP65
Input Voltage 120-277VAC, 50/60Hz
Driver Type Constant Current, Class 1
Surge Protection L-N /L&N-PE:4+6KV
Operating Temperature -40°C to +40°C (-40°F to +104°F)
Housing Material Die-cast aluminum housing
Housing Color Bronze (Call for white)
Dimensions 14.38” x 9.31” x 7.88”
Weight 9.5 lbs
Certification DLC Premium, UL Wet Location
DLC ID(s) S-RG42NL
Warranty 5 years
Additional Specifications BUG Rating:
60W: B2 U4 G5
50W: B2 U4 G4
40W: B1 U3 G4
30W: B1 U3 G3

Details

Powerful, Adjustable, and Built for Precision

The RAB W22 wall pack is an industry-leader in field-adjustability, sporting a distinctive 0°-45° adjustable forward throw that lets you put light exactly where you need it. From tight facade and sidewalk lighting to a larger forward throw on a loading apron or parking lot, this wall pack does it all — and adjusts again later if the site's needs change.

  • Order With Confidence, Dial In on Site: Adjustable wattage, CCT, and forward throw mean one SKU fits nearly any application, so you're not guessing at the right spec before the site is fully scoped, or stocking a different wall pack for every wall of a building.
  • Strong Output, Flexible Mounting: Delivers up to 9,105 lumens at 150 lm/W to provide energy-efficient illumination from mounting heights of 15 to 30 ft. Cut energy bills without sacrificing performance.
  • Photocell Built In: An integrated photocell can be switched on for automatic dusk-to-dawn operation, no separate accessory needed.
  • Dimmable With a Separate Control Circuit: The driver includes 0-10V dimming control wiring with dimming down to 10% so you can dial in exactly the right output without wasting any electricity.
  • Built Rugged for Extreme Conditions: A die-cast aluminum housing, glass lens, and aluminum reflector hold up outdoors year-round, with a -40°F cold-start rating to handle even the coldest winter nights.
  • 5-Year Warranty: Full manufacturer coverage when purchased through ELEDLights as an authorized RAB dealer.

Forward Throw Adjustment

Adjust the throw angle on-site with the included Allen wrench to match the wall it's mounted on:

Angle Effect Ideal For
45° Throws light furthest from building Storefronts, small parking lots, loading and receiving zones
30° Highlights building perimeter Facade accents, perimeter security lighting for retail & commercial sites
15° Reduces glare Walkways, entries, pedestrian-facing areas in retail & mixed-use zones
0° Eliminates light trespass Property lines, residential-adjacent walls, shared commercial lots

Ideal Applications

  1. Loading Docks & Parking Lots: Set to 45° throw for maximum forward illumination across open paved areas.
  2. Building Perimeters: Set to 30° to highlight the facade while still delivering functional security lighting.
  3. Walkways & Entries: Set to 15° for reduced glare in pedestrian-facing areas.
  4. Property Lines & Residential-Adjacent Walls: Set to 0° for full cutoff where light trespass onto a neighboring property needs to be avoided entirely.
  5. Retail, Commercial & Light Industrial Buildings: Mounts from 15 to 30 ft, sized for the wall heights common on retail storefronts, small commercial buildings, and light industrial properties.
