Saves $/year in energy costs*
Compared to spray disinfecting, UVC germicidal fixtures, which require neither labor nor chemicals, have very low operating costs, making them a great way to enhance your existing sanitizing protocols without increasing your labor and consumables costs. And compared to portable germicidal lamps, these permanently installed fixtures don't need to be stored, set up, and put back away again for each use. They are always in place, out of the way, and ready for use.
This item can only ship via UPS Ground.
This item can only ship via UPS Ground.
Disinfecting Fixtures for After-Hours/Between-Classes Sanitizing of Surfaces

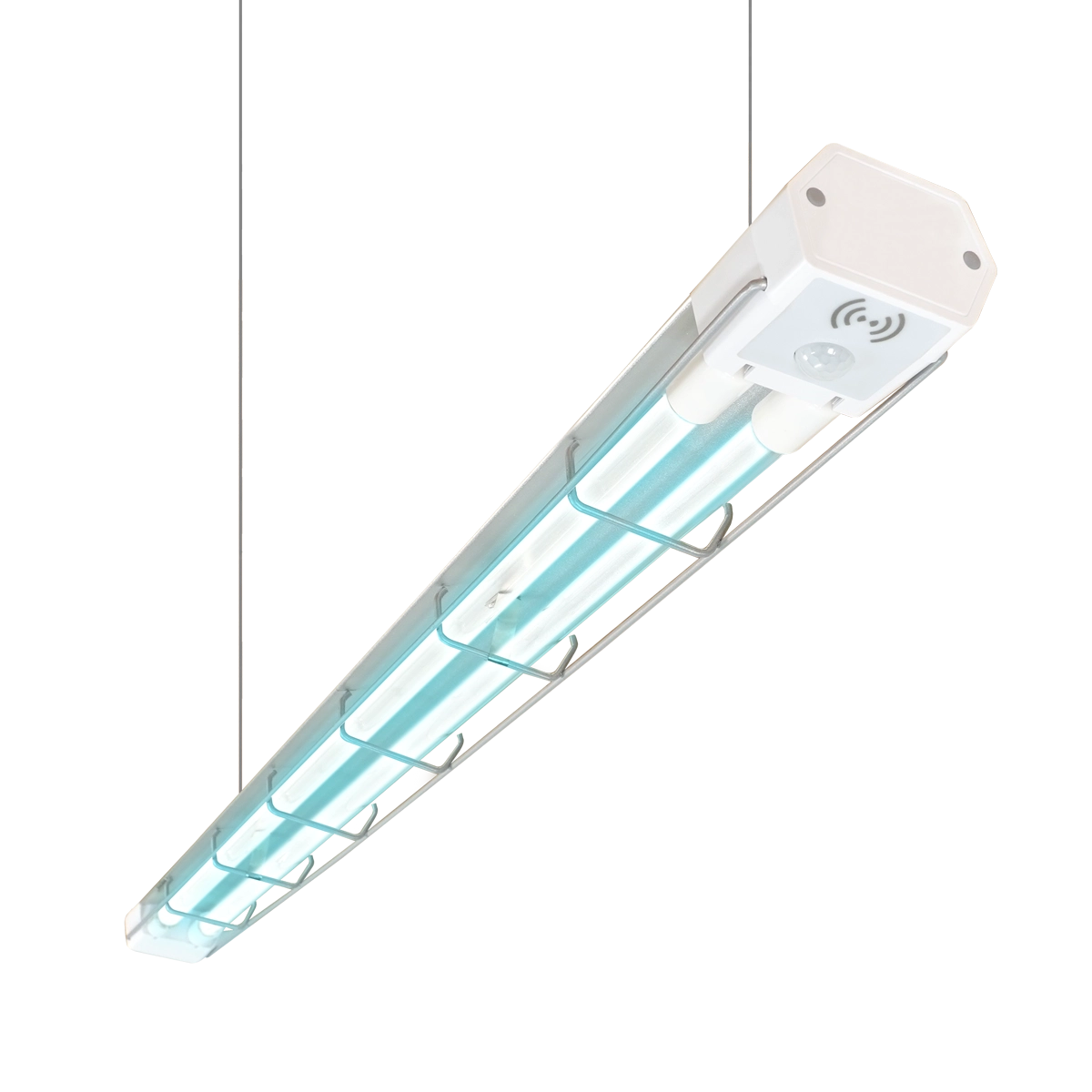

Our linear UVC germicidal disinfecting fixtures can be suspended from or flush-mounted to the ceiling. For safety, each fixture features redundant built-in motion sensors—one microwave and one PIR—to ensure the light turns off immediately if motion is detected. The fixtures automatically resume operation once their sensors detect it is safe to do so.
Remote-Control Operation

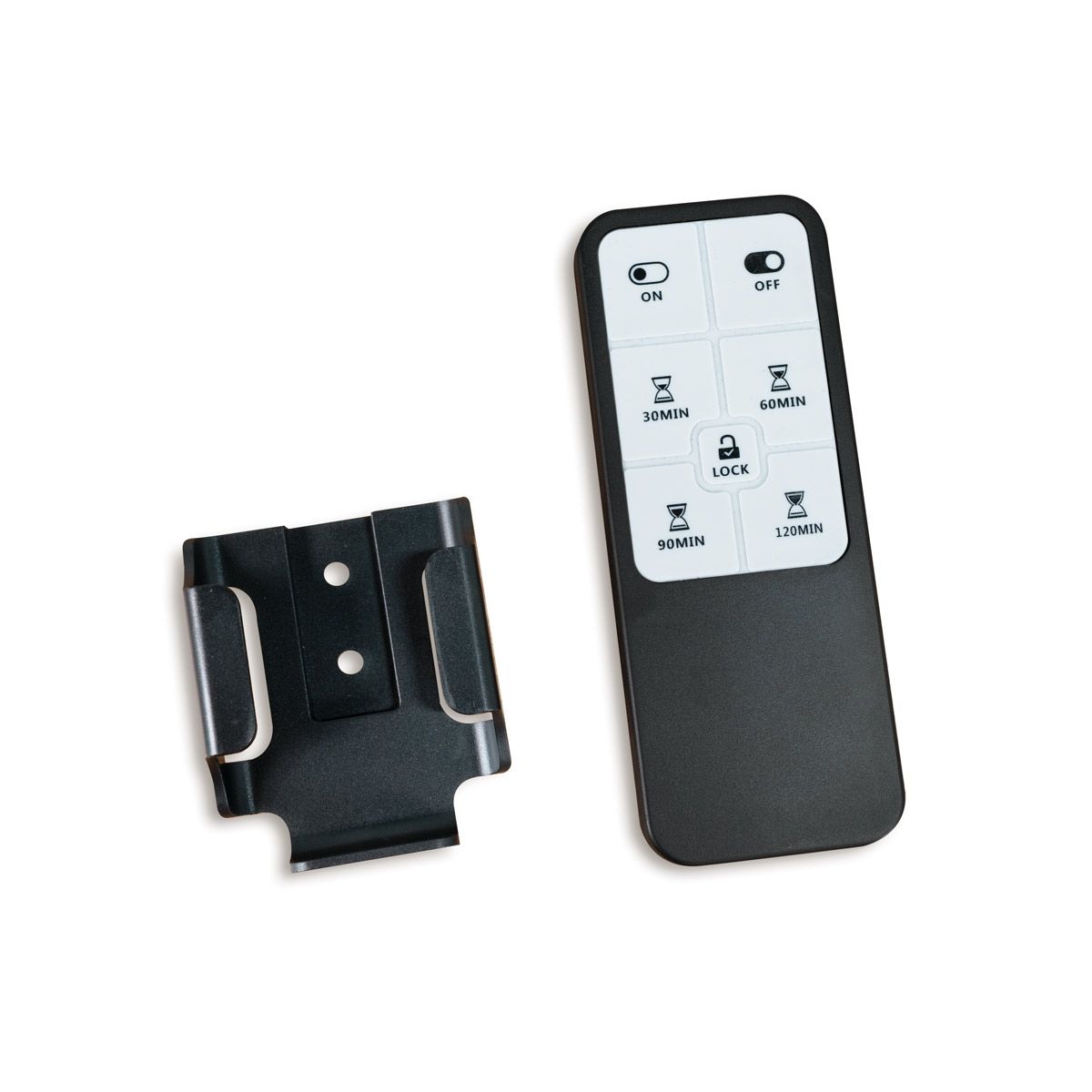

Operation is via an IR remote, with four disinfecting periods to choose from: 30 minutes, 60 minutes, 90 minutes, and 120 minutes. The longer the period, the more thoroughly the UVC light is able to penetrate at the full distance of its usable area. Once a period is selected, the lamp will emit a warning tone for 20 seconds before beginning operation.
Sized to Your Needs
The germicidal UVC fixture is available in 2 foot, 3 foot, and 4 foot lengths. Fixture length, installation height, operation time, and the contours of the space you are disinfecting together determine the effective coverage area, but as a general guide, the 2 foot fixture can roughly cover from 160 to 320 sq ft, the 3 foot from 215 to 430 sq ft, and the 4 foot from 430 to 645 sq ft.
2ft 40W GUV Light
Time | Covers Up To |
30 minutes | 160 sq ft |
60 minutes | 215 sq ft |
90 minutes | 270 sq ft |
120 minutes | 320 sq ft |
3ft 60W GUV Light
Time | Covers Up To |
30 minutes | 215 sq ft |
60 minutes | 320 sq ft |
90 minutes | 375 sq ft |
120 minutes | 430 sq ft |
4ft 80W GUV Light
Time | Covers Up To |
30 minutes | 430 sq ft |
60 minutes | 535 sq ft |
90 minutes | 590 sq ft |
120 minutes | 645 sq ft |
Safety note: UVC radiation can cause skin burns and eye injuries that may appear hours after exposure has occurred. Avoid direct skin exposure to UVC radiation and never look directly into a UVC light source, even briefly. For protection, many UVC lamps automatically shut off when approaching motion is detected. For lamps that require an operator, such as handheld UVC sanitizers, we recommend ANSI Z87.1-1989 eye/face protection, long pants and sleeves, and disposable nitrile gloves.
Wavelength | 254 nm peak |
Wattage(s) | 40W-80W |
Occupancy Sensor | Yes |
Safety Features | 20-second delay with alarm buzzer & automatic shutoff when motion is detected via the built-in microwave and PIR sensors |
Hold Time | 30/60/90/120 minutes |
Operation Method | IR Remote Control |
Installation | Wire suspension from ceiling |
Light Type | Germicidal UV (UVC) |
Input Voltage | 120V (100-140V) |
Dimensions | 2.6" wide x 2.12" deep and either 27.7", 39" or 51" long |
Certification | CETL, ETL, UL, EPA |
Warranty | 1 Year |
