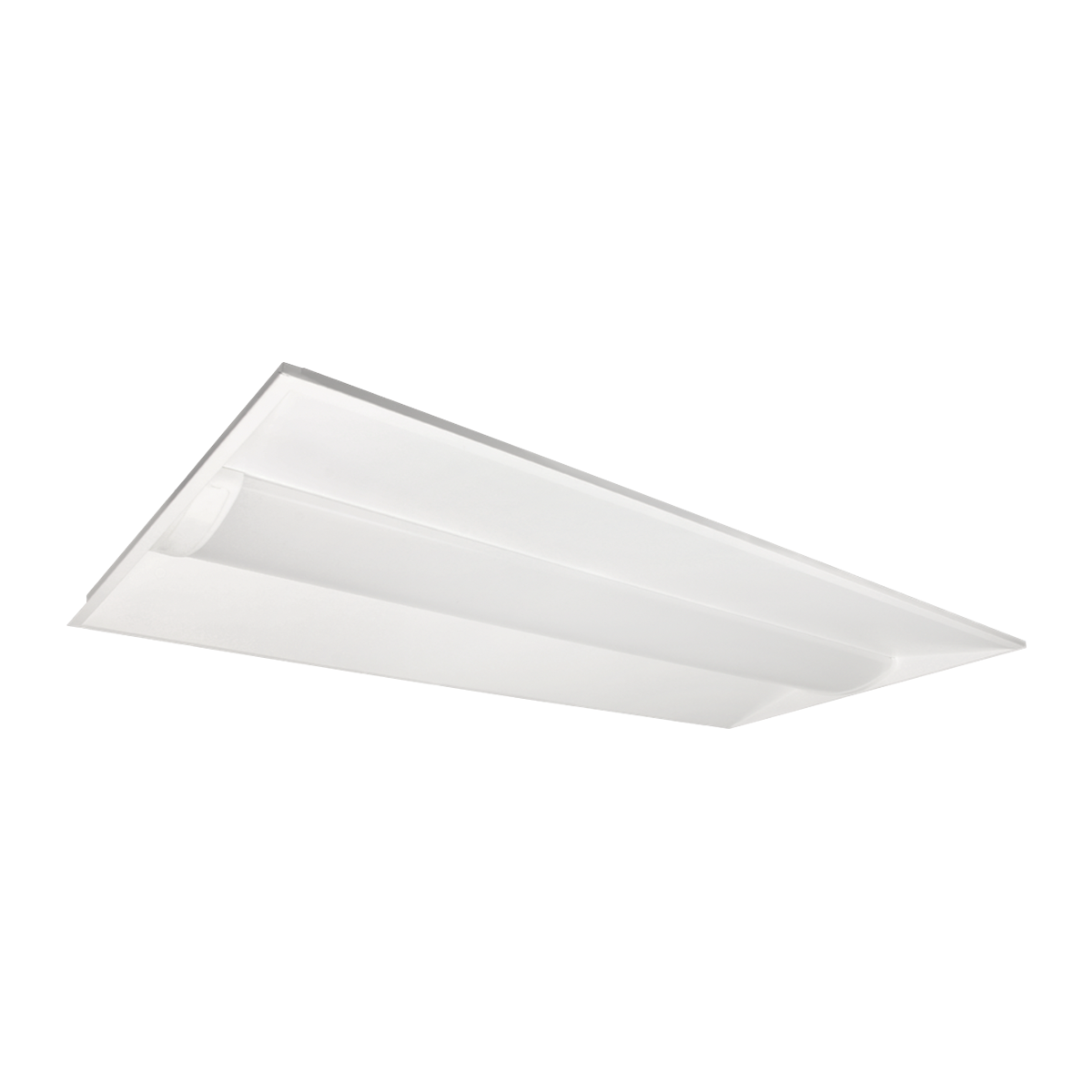

2x4 34W Selectable MaxLite ArcMax LED Troffer
(2-Pack)
2x4 34W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x4 34W Selectable MaxLite ArcMax LED Troffer (2-Pack)
2x4 34W Selectable MaxLite ArcMax LED Troffer
(2-Pack)
The MaxLite ArcMax 2x4 troffer is built for efficiency-focused projects with smart control options.
- Up to 161 lm/W efficacy — among the highest available in a 2x4 troffer.
- Controls-ready: add a plug-and-play sensor for daylight harvesting and occupancy dimming anytime.
- Rated for 100,000 hours with a 10-year warranty — double the industry standard.
The MaxLite ArcMax 2x4 troffer is built for efficiency-focused projects with smart control options.
- Up to 161 lm/W efficacy — among the highest available in a 2x4 troffer.
- Controls-ready: add a plug-and-play sensor for daylight harvesting and occupancy dimming anytime.
- Rated for 100,000 hours with a 10-year warranty — double the industry standard.
Choose options
Specs
| Wattage(s) | 22W/28W/34W |
| Light Output |
At 3500K: 3,430/4,280/5,100 lumens At 4000K: 3,540/4,420/5,270 lumens At 5000K: 3,470/4,340/5,160 lumens |
| Luminous Efficacy (lm/W) | Up to 161 lm/W |
| Average Lamp Life | L70: ≥100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Dimming Range | 10-100% (Dim to OFF Voltage: 0.3V ± 0.2V) |
| Occupancy Sensor | Optional - Can be installed in the field |
| Working Environment | Indoors |
| Enclosure Rating | Damp location |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | ≥ 0.87 |
| Surge Protection | 2.5KV |
| Operating Temperature | -4°F to 122°F |
| Humidity | 10% to 80% RH non-condensing |
| Housing Material | Sheet metal with a PMMA lens |
| Housing Color | White |

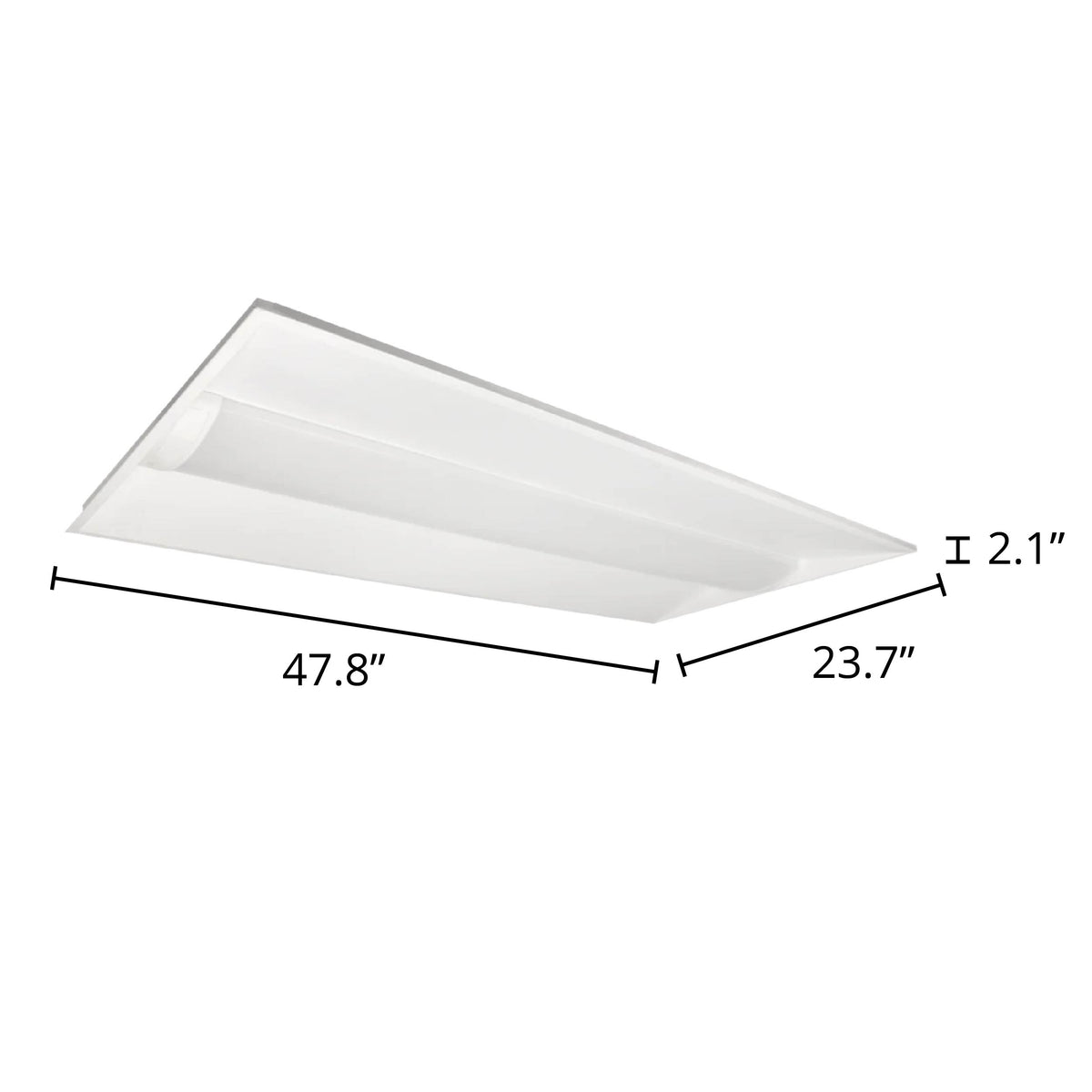

| Dimensions | 47.8" x 23.7" x 2.1" |
| Certification | DLC, UL |
| DLC ID(s) | S-GS4ML5 |
| Warranty | 10 Years |
Details
An Attractive, Efficient, Future-Proof Troffer
Perfectly Match Your Space: Color temperature and lumen output are set during install.
Enjoy Beautifully Even Light: Low-glare optics ensure uniform brightness.
Take Full Control of Energy Use: Add a plug-and-play smart sensor to fine-tune your lighting with motion sensing and daylight harvesting.
A perfect replacement for fluorescent troffers in both lighting remodels and new construction.
