RAB Lighting

10W Selectable RAB Oval LED Bulkhead Wall Sconce

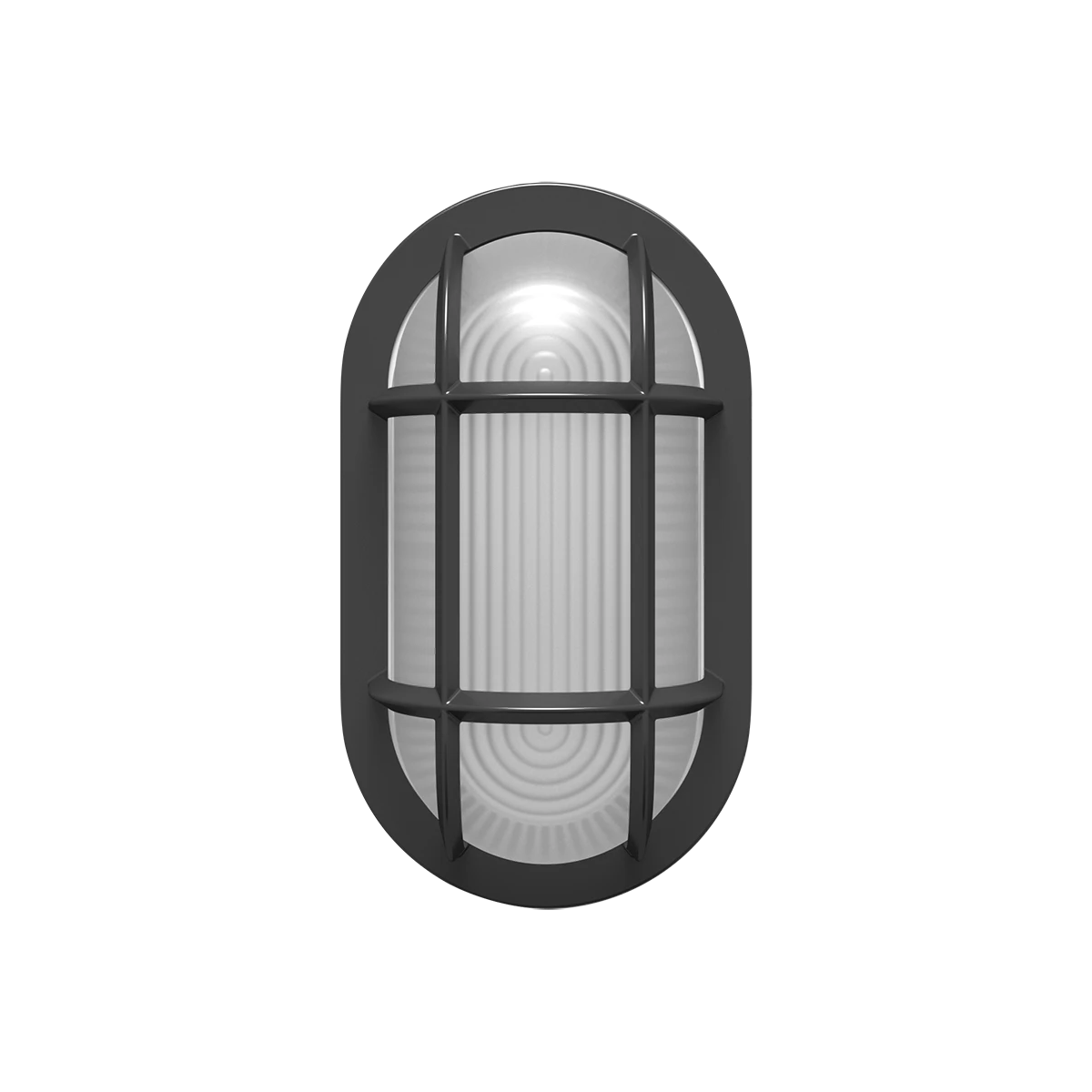

RAB oval LED bulkhead wall sconce in bronze with a caged frosted lens
Oval bulkhead wall sconces on a stone wall above an outdoor restaurant patio by the water

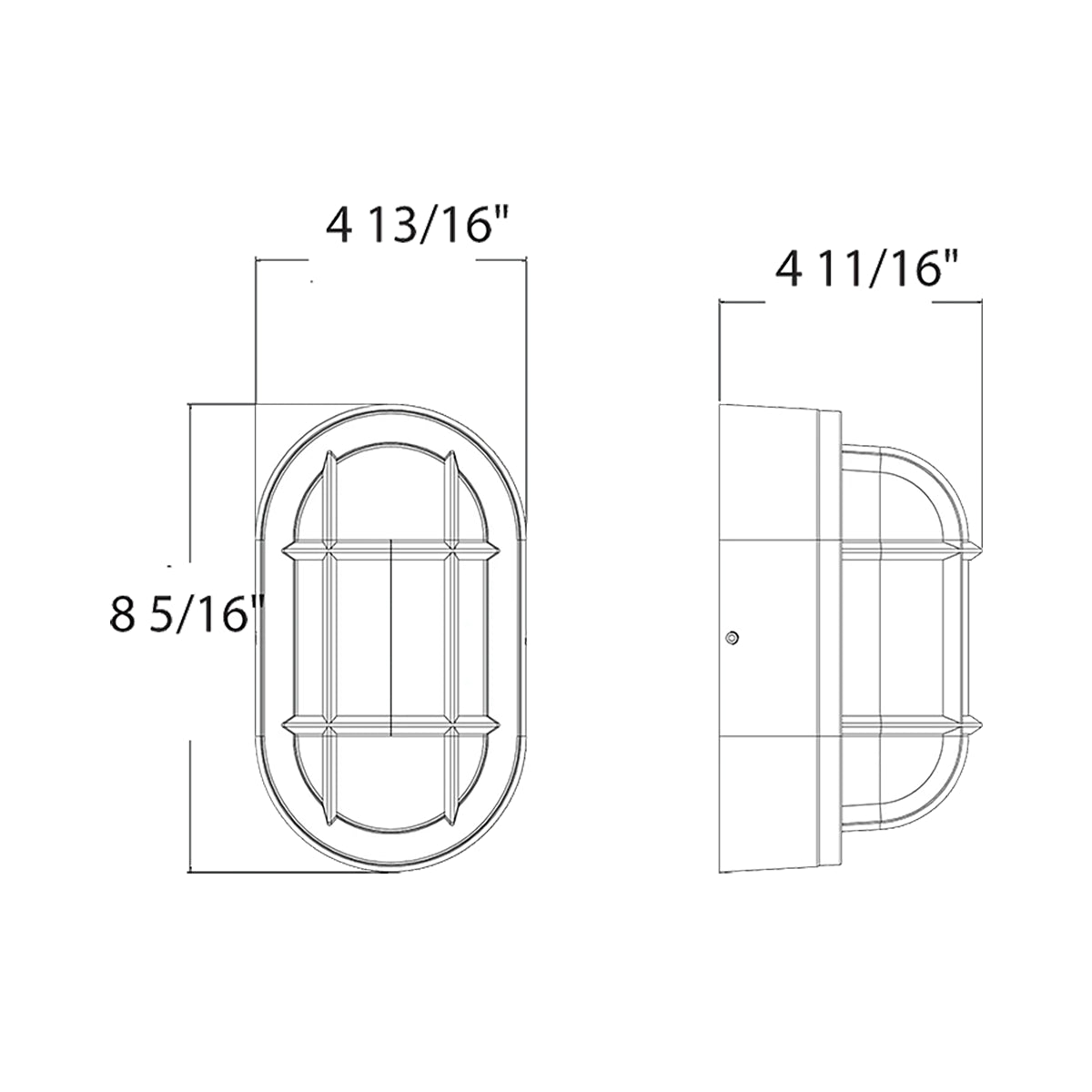

RAB oval LED bulkhead dimensions: 8 5/16 in tall, 4 13/16 in wide, 4 11/16 in deep

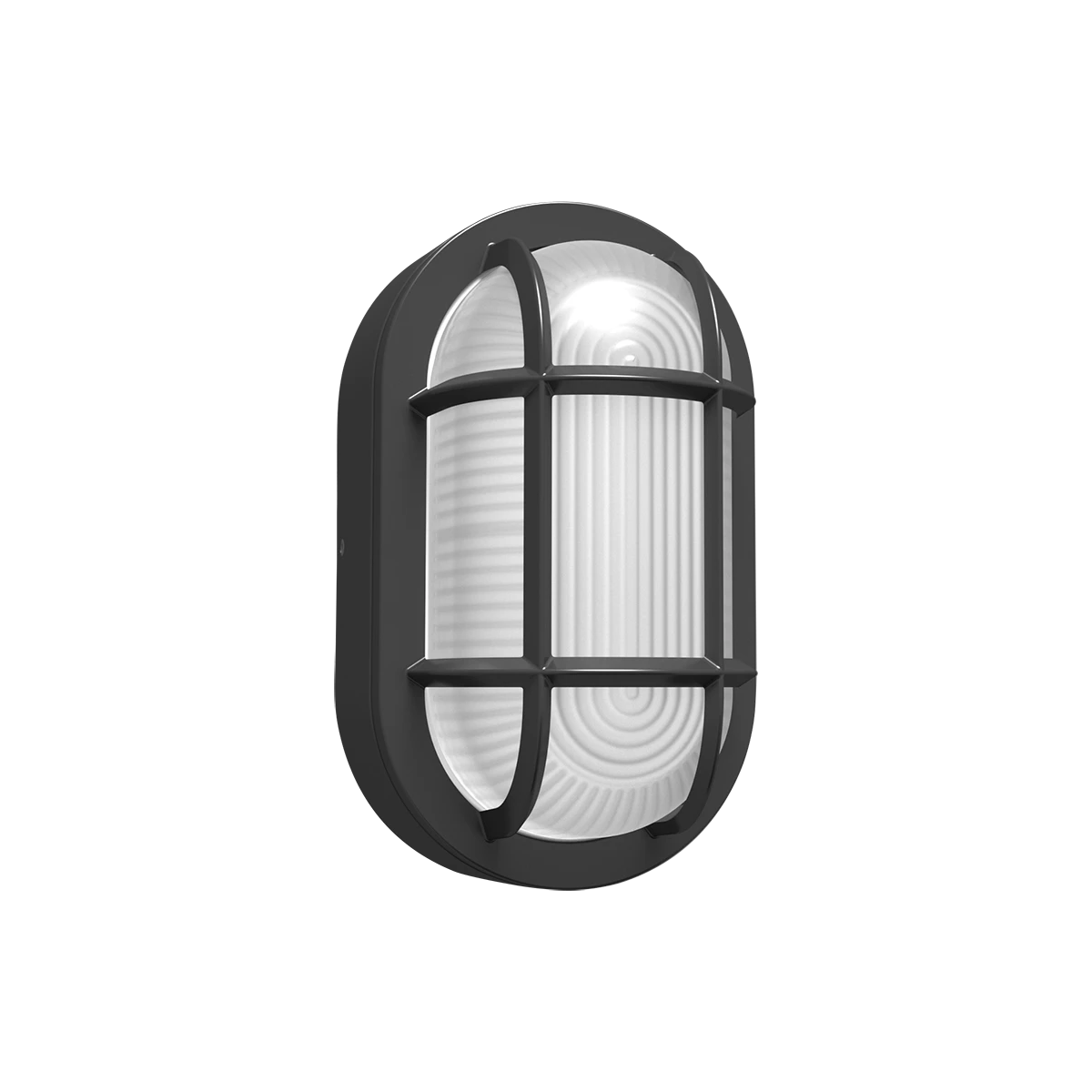

RAB oval LED bulkhead wall sconce in bronze, angled view

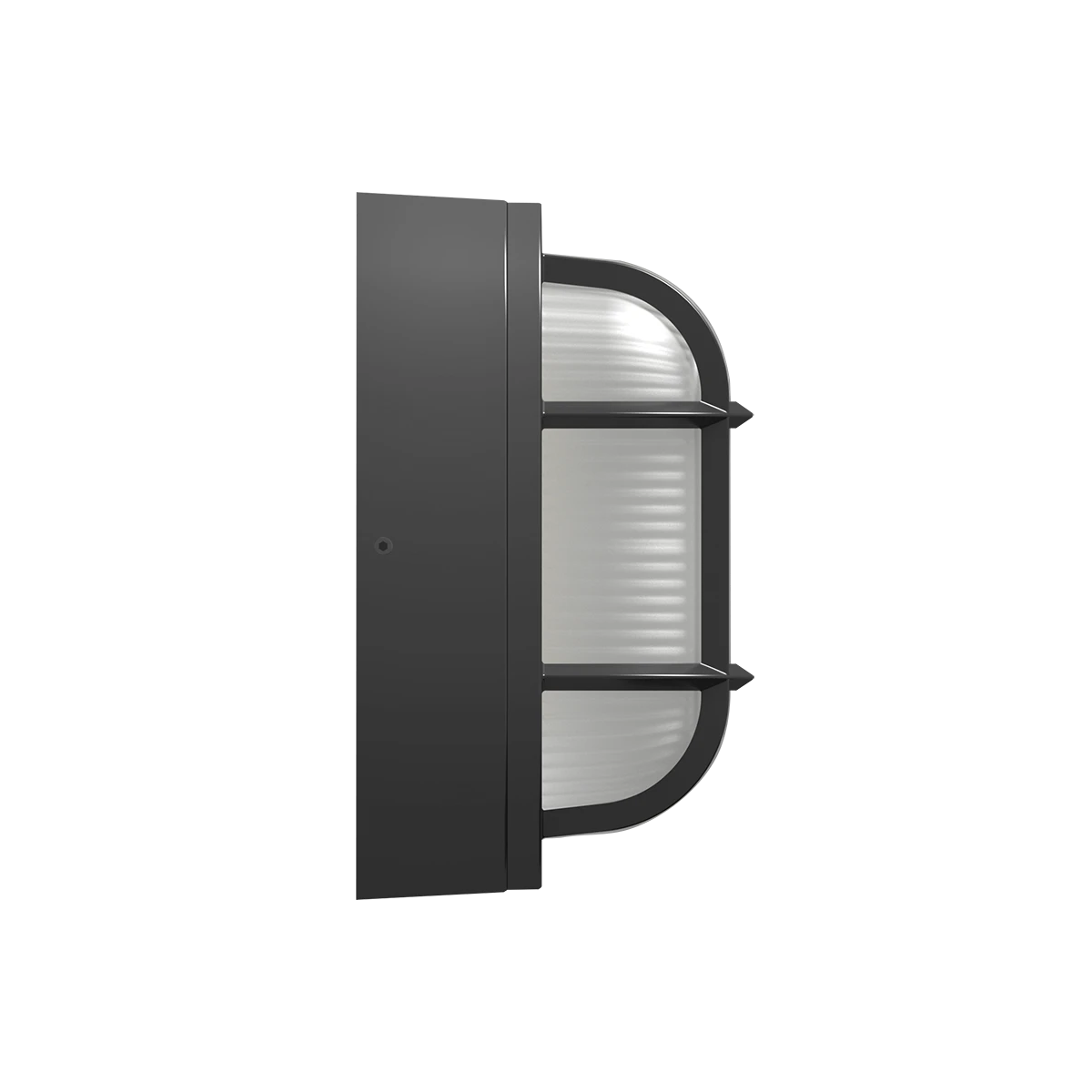

Side view of the RAB oval LED bulkhead showing its depth and caged lens

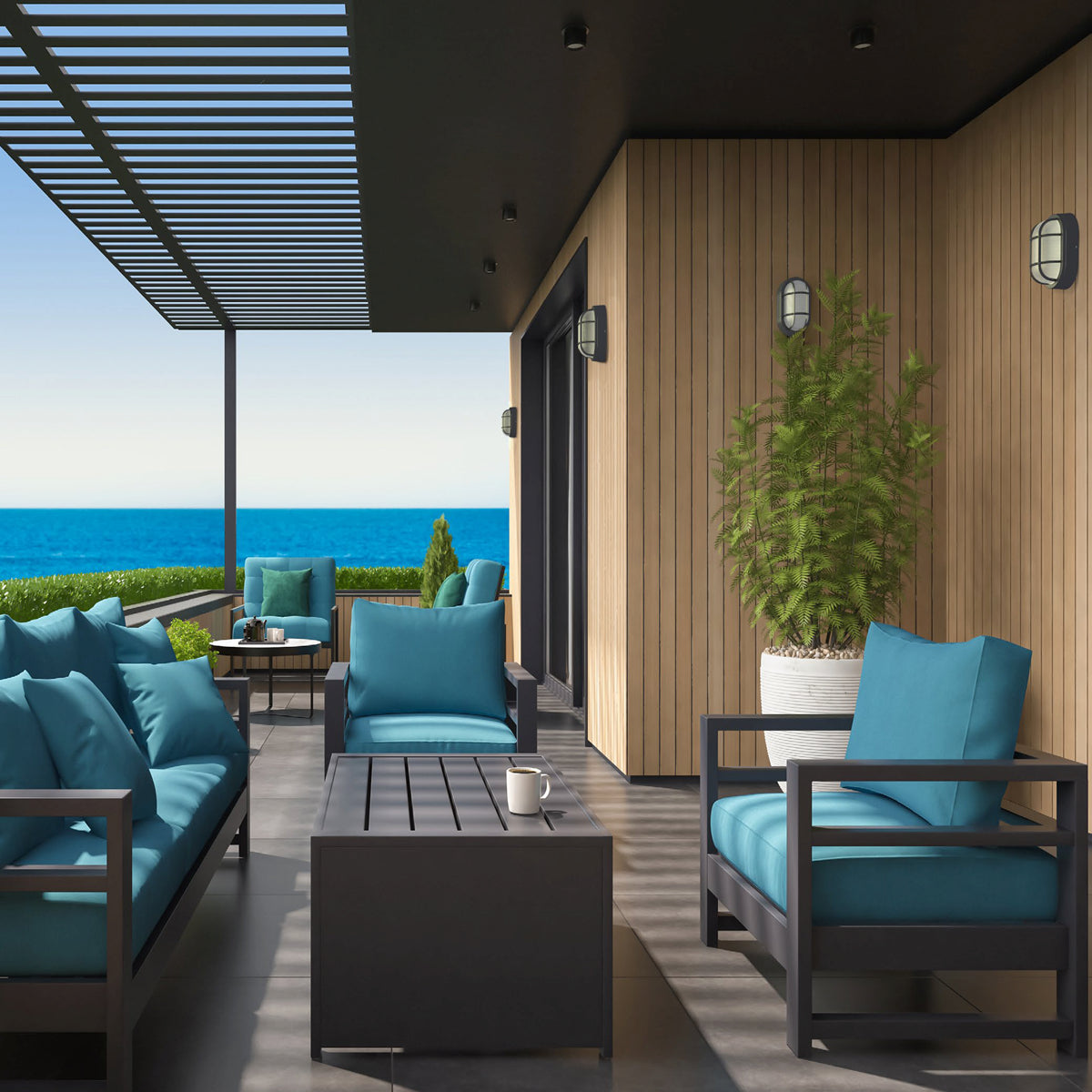

Bulkhead wall sconces on a wood-paneled wall above a covered patio overlooking the ocean
White bulkhead wall lights on a seaside boardwalk building beside a pier with lamp posts
RAB Lighting

10W Selectable RAB Oval LED Bulkhead Wall Sconce

SKU: BULKH10
Sale price$61.00
Regular price

The RAB BULKH10 is a field-adjustable oval LED bulkhead sconce that brings a classic nautical aesthetic to waterfront restaurants, marina facilities, resort exteriors, covered decks, and commercial building entrances. With selectable wattage and CCT, an integrated photocell, and a 100,000-hour lamp life, it's a set-it-and-forget-it fixture that is fine-tuned at installation and then run for years without another thought.

  • Output up to 1,002 lumens suits entrances, walkways, and outdoor living areas
  • 100,000-hour lamp life — exceptional for a bulkhead at this price point, with a full 5-year RAB warranty
  • UL wet location listed with IP65-rated die-cast aluminum housing, integrated grill, and glass lens — built for permanent outdoor exposure
Contractor or Large Project? Request Project Pricing

Call for Lead Time

Free Shipping Over $500

The RAB BULKH10 is a field-adjustable oval LED bulkhead sconce that brings a classic nautical aesthetic to waterfront restaurants, marina facilities, resort exteriors, covered decks, and commercial building entrances. With selectable wattage and CCT, an integrated photocell, and a 100,000-hour lamp life, it's a set-it-and-forget-it fixture that is fine-tuned at installation and then run for years without another thought.

  • Output up to 1,002 lumens suits entrances, walkways, and outdoor living areas
  • 100,000-hour lamp life — exceptional for a bulkhead at this price point, with a full 5-year RAB warranty
  • UL wet location listed with IP65-rated die-cast aluminum housing, integrated grill, and glass lens — built for permanent outdoor exposure

Specs

Wattage(s) 10/8/6W (Field Selectable)
Replaces Wattage(s) 40
Light Output 573–1,002 lm
Luminous Efficacy (lm/W) 90.1–107.2 lm/W
Average Lamp Life 100,000 Hours (L70, per IES LM-80 / TM-21)
Color Temperature(s) 3000K / 4000K / 5000K Selectable
CRI (Color Accuracy) 82–84
Dimming No
Safety Features Mercury and UV free; RoHS-compliant components; High-temperature silicone gaskets
Bulb Shape Oval
Light Distribution Pattern BUG Rating: B0 U2 G1 (10W / 8W / 6W) Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Lens Cover Glass lens
Installation Wall mount
Working Environment Outdoor – Wet Location
Enclosure Rating IP65
Light Type LED – Long-life, high-efficacy, discrete, surface-mount LEDs
LED Type Discrete, surface-mount LEDs
Input Voltage 120–277V, 50/60 Hz
Driver Type Constant Current, Class 1
Power Factor 10W: 97% @ 120V, 93.5% @ 277V; 8W: 96.3% @ 120V, 91.0% @ 277V; 6W: 96.5% @ 120V, 86.4% @ 277V
THD (Total Harmonic Distortion) 10W: 23.7% @ 120V, 14.8% @ 277V; 8W: 25.9% @ 120V, 15.6% @ 277V; 6W: 24.1% @ 120V, 18.7% @ 277V
Surge Protection 2 kV
Input Power Rating 5.82–10W
Input Current 10W: 120V=0.10A, 208V=0.05A, 240V=0.04A, 277V=0.04A; 8W: 120V=0.07A, 208V=0.04A, 240V=0.04A, 277V=0.03A; 6W: 120V=0.05A, 208V=0.03A, 240V=0.03A, 277V=0.03A
Operating Temperature -40°F (-40°C) min starting; 113°F (45°C) max ambient
Housing Material Die-cast aluminum
Housing Color Bronze (Call for white or other color options)
Dimensions 8 5/16" H x 4 13/16" W x 4 11/16" D
Certification UL Listed – Wet Location; IESNA LM-79 & LM-80 Tested; RoHS Compliant
Warranty 5-Year Limited Warranty (light output, driver performance, paint finish)
Additional Specifications Photocell: 120–277V selectable on/off photocell (factory default: On); Aux Power Supply: No; Dim to Off: No; Gaskets: High-temperature silicone; Finish: Formulated for high durability and long-lasting color
Other Specifications Field adjustable wattage (factory default 10W) and CCT (factory default 5000K). Ordering matrix: Oval shape = blank suffix; Round = R suffix; White finish = W suffix.

Details

Spec Value Why It Matters
Light Output 573–1,002 lm at up to 107 lm/W Right-sized output for entrances, walkways, and outdoor living areas
Wattage Options 6W/8W/10W selectable One SKU covers different output needs without separate orders
Color Temp Options 3000K/4000K/5000K selectable Match warm, neutral, or cool light to the application on-site
Lamp Life L70: 100,000 hours Roughly 2x the lifespan of many competing bulkheads — fewer replacements over time
Enclosure IP65, UL wet location Die-cast aluminum housing with glass lens and silicone gaskets — rated for permanent outdoor exposure
Photocell Integrated selectable on/off Automated dusk-to-dawn operation without external controls



The Classic Bulkhead Form, Done Right

The RAB BULKH10 is the modern version of a classic. It combines the nautical bulkhead form that's been a staple on working waterfronts and coastal properties for decades with modern, field-selectable LED technology, a 100,000-hour lifespan, and RAB's commercial-grade build quality. It works as well on a waterfront restaurant patio as it does on a commercial service entrance.

  • Classic Nautical Form, Commercial-Grade Build: The characteristic cage-over-glass silhouette of the traditional maritime bulkhead fixture, updated with discrete surface-mount LEDs, a durable powder coat finish, and RAB's five-year no-compromise warranty. The look fits architecturally wherever the classic industrial-maritime aesthetic is the right choice.
  • Integrated Protective Grill with Glass Lens: The die-cast aluminum grill protects the glass lens from impact — and the glass lens transmits light more efficiently and clearly than the polycarbonate lenses used in cheaper bulkheads, which yellow and crack over time.
  • Selectable Wattage and Color Temperature: Field-select 6W, 8W, or 10W and choose 3000K, 4000K, or 5000K at installation — one SKU covers multiple applications without separate orders.
  • L70: 100,000-Hour Lamp Life: At roughly twice the lifespan of many lower-cost bulkheads, this fixture means fewer replacements, fewer labor calls, and lower long-term cost — especially meaningful across large numbers of fixtures on commercial or multi-unit properties.
  • UL Wet Location Listed: Rated for exposed outdoor installation in rain, salt air, and high-humidity environments — not just damp location rated. Tested to -40°F for cold-climate applications.
  • Integrated Selectable Photocell: Factory-installed dusk-to-dawn photocell operates automatically without external controls or additional wiring, with a selectable on/off switch for manual override.
  • Low Uplight and Backlight: BUG rating B0 U2 G1 means minimal uplight and backlight — an important factor for sites where light trespass or dark-sky compliance is a concern.
  • 5-Year RAB Warranty: Full manufacturer coverage on light output, driver performance, and paint finish.



Ideal Applications

  1. Waterfront Restaurants & Outdoor Dining: The classic nautical cage form suits marina-adjacent and coastal dining environments naturally — durable enough for salt air and rain, attractive enough for a designed outdoor space.
  2. Marina & Boatyard Facilities: IP65 and UL wet location ratings handle the salt air, moisture, and impact exposure of working marine environments where fixture appearance and durability both matter.
  3. Resort & Hotel Exteriors: Covered walkways, pool areas, resort pathways, and hotel entry canopies where a classic maritime aesthetic integrates naturally with coastal or traditional architectural styles.
  4. Covered Residential Decks & Outdoor Living Areas: Low output at 3000K warm white creates comfortable, inviting evening light on covered decks, pergolas, and outdoor entertaining spaces — with the photocell handling automation.
  5. Commercial Building Entrances & Service Doors: Reliable, photocell-automated illumination for secondary entrances and service access points where long lamp life and hands-off operation reduce maintenance overhead.
  6. Covered Walkways & Breezeways: IP65 and wet location rating handle exposure in covered but not fully enclosed outdoor corridors — the classic form suits traditional and transitional architecture better than a standard utility wall pack.



The ELEDLights Advantage on RAB

  • Authorized RAB Dealer: 5,000+ units sold, all with full RAB warranty coverage. That's a guarantee you won't get through gray market sellers, regardless of their listing claims.
  • Competitive Pricing: You won't find a lower price at any authorized RAB distributor — and if you do, we'll match it. If you are planning a large order, contact us for volume pricing.
  • Full RAB Catalog Access: Don't see a RAB product on our site? We can get it fast. Source your entire RAB project through one supplier — no juggling multiple vendors, invoices, or delivery schedules.
  • Rebate Assistance: Our team will help you take advantage of available utility rebates so you don't leave money on the table.
