20W Selectable RAB Oval LED Bulkhead Wall Sconce

RAB 20W oval LED bulkhead wall sconce in bronze with a caged frosted lens

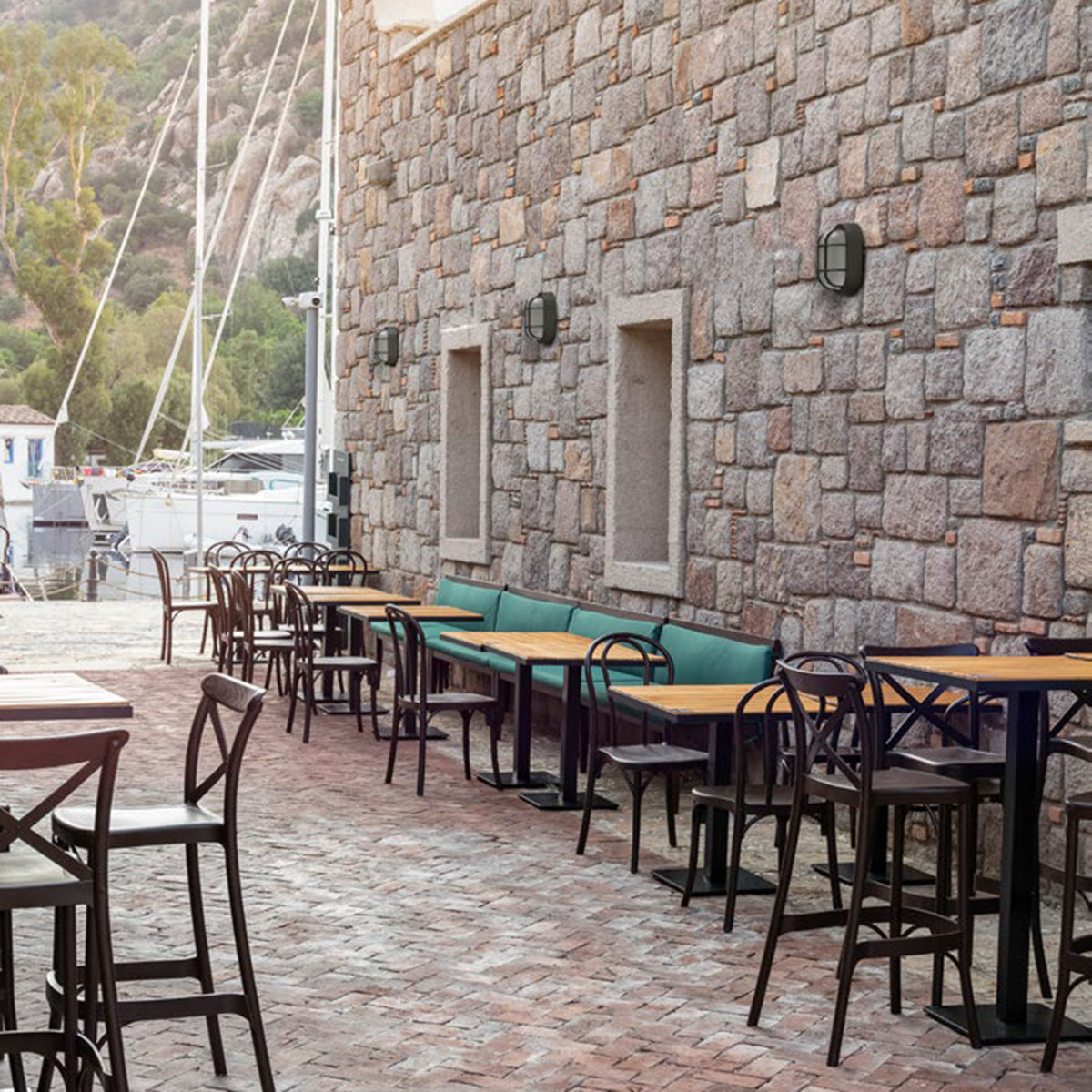

Oval bulkhead wall sconces on a stone wall above an outdoor restaurant patio by the water

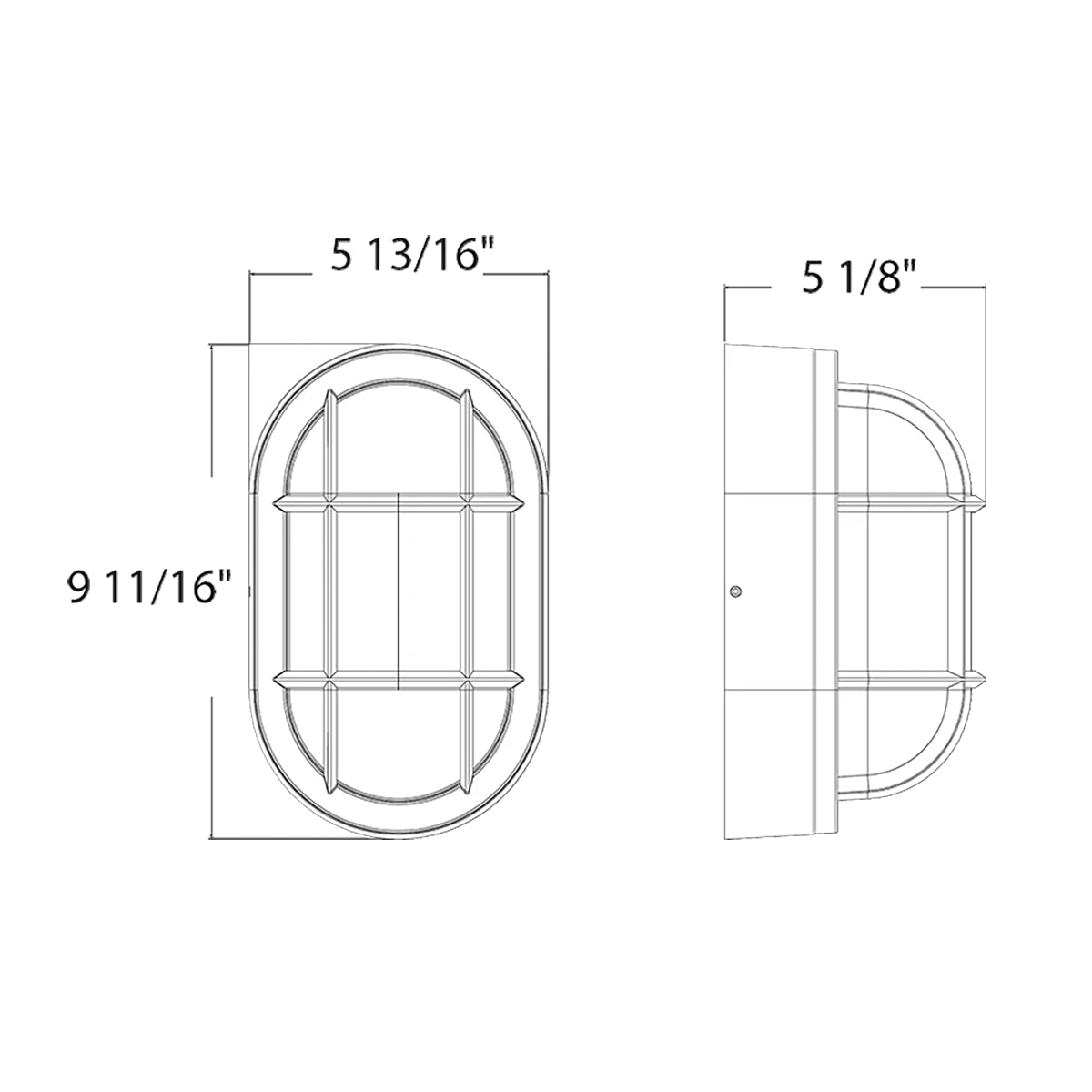

RAB 20W oval LED bulkhead dimensions: 9 11/16 in tall, 5 13/16 in wide, 5 1/8 in deep

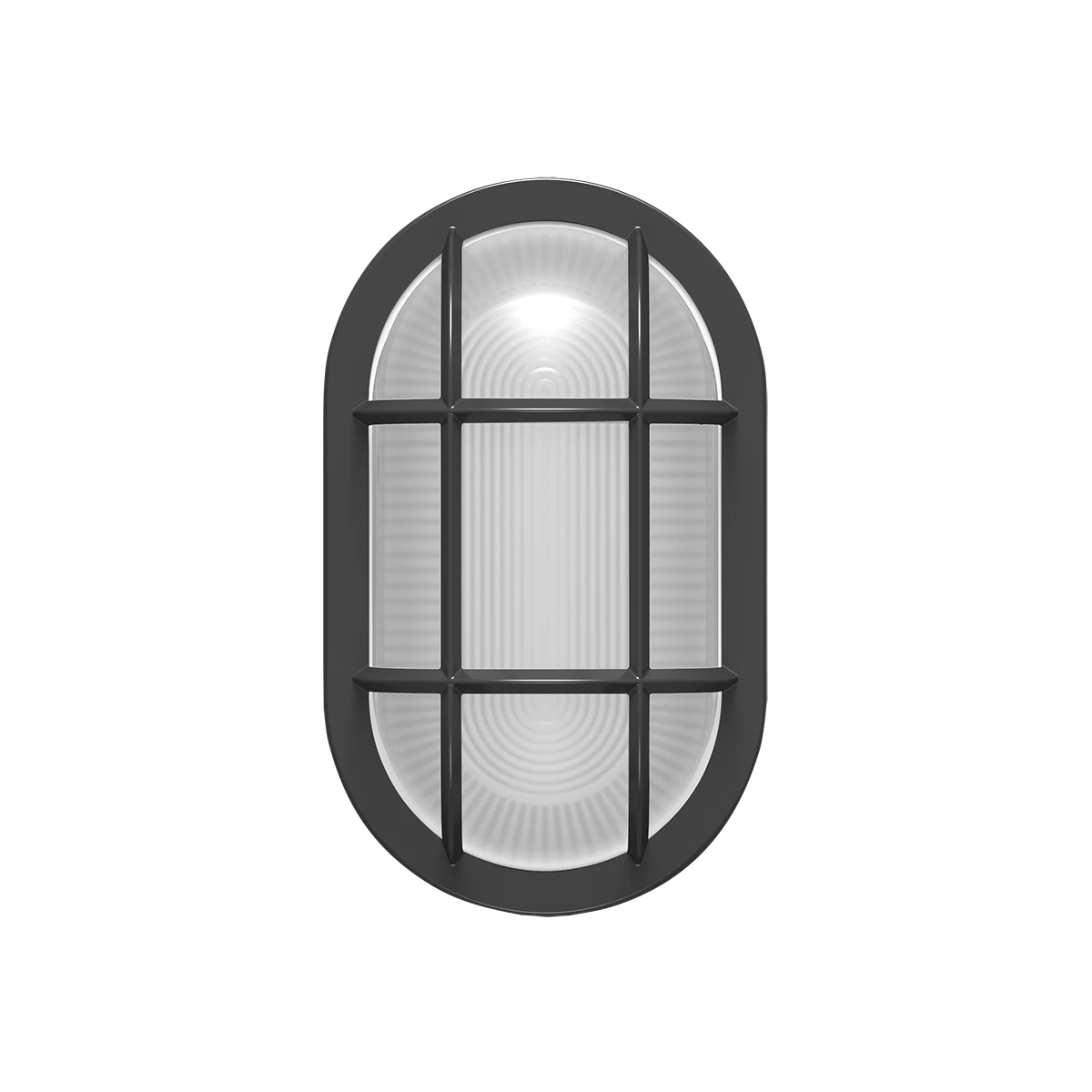

RAB 20W oval LED bulkhead in bronze, front view

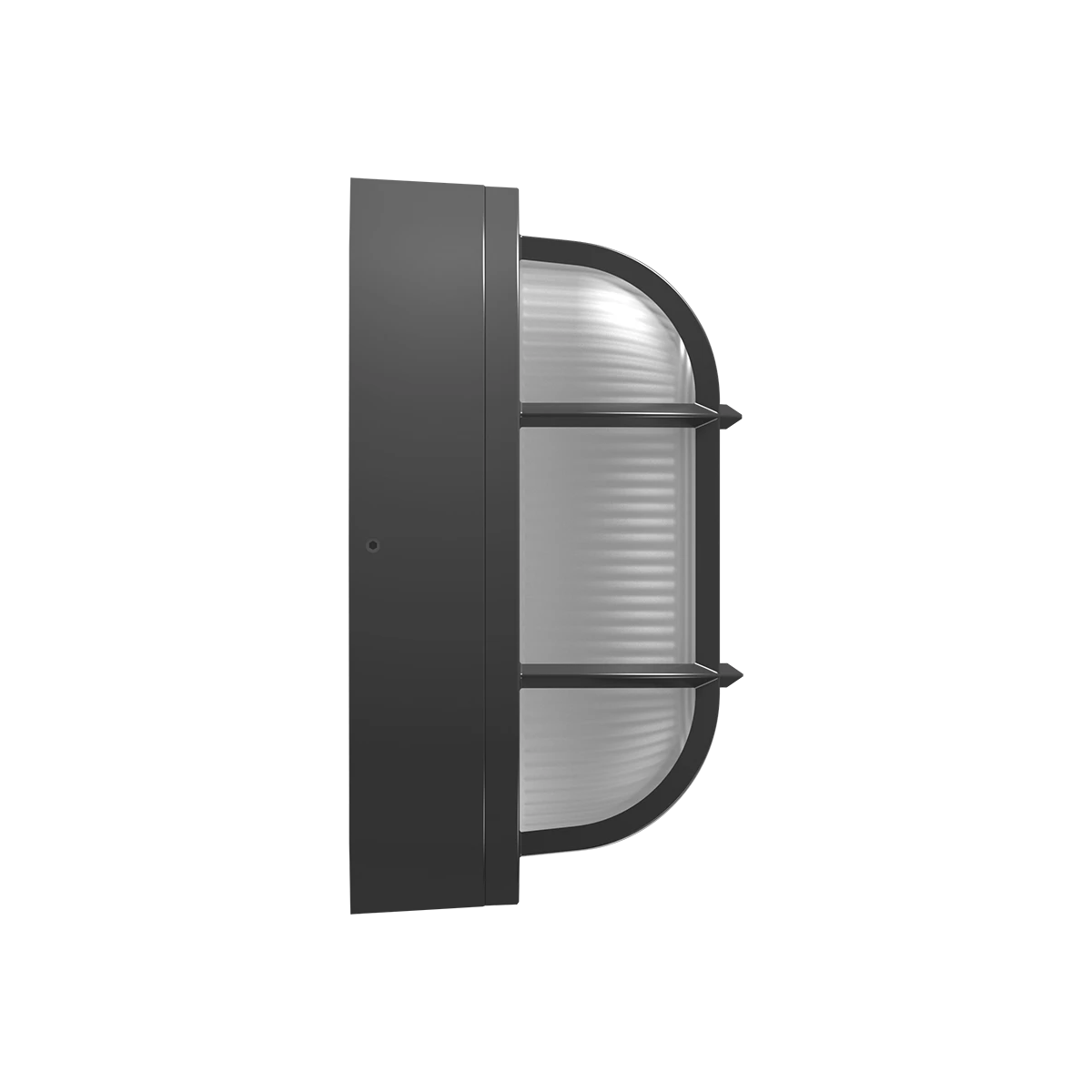

Side view of the RAB 20W oval LED bulkhead showing its depth and caged lens

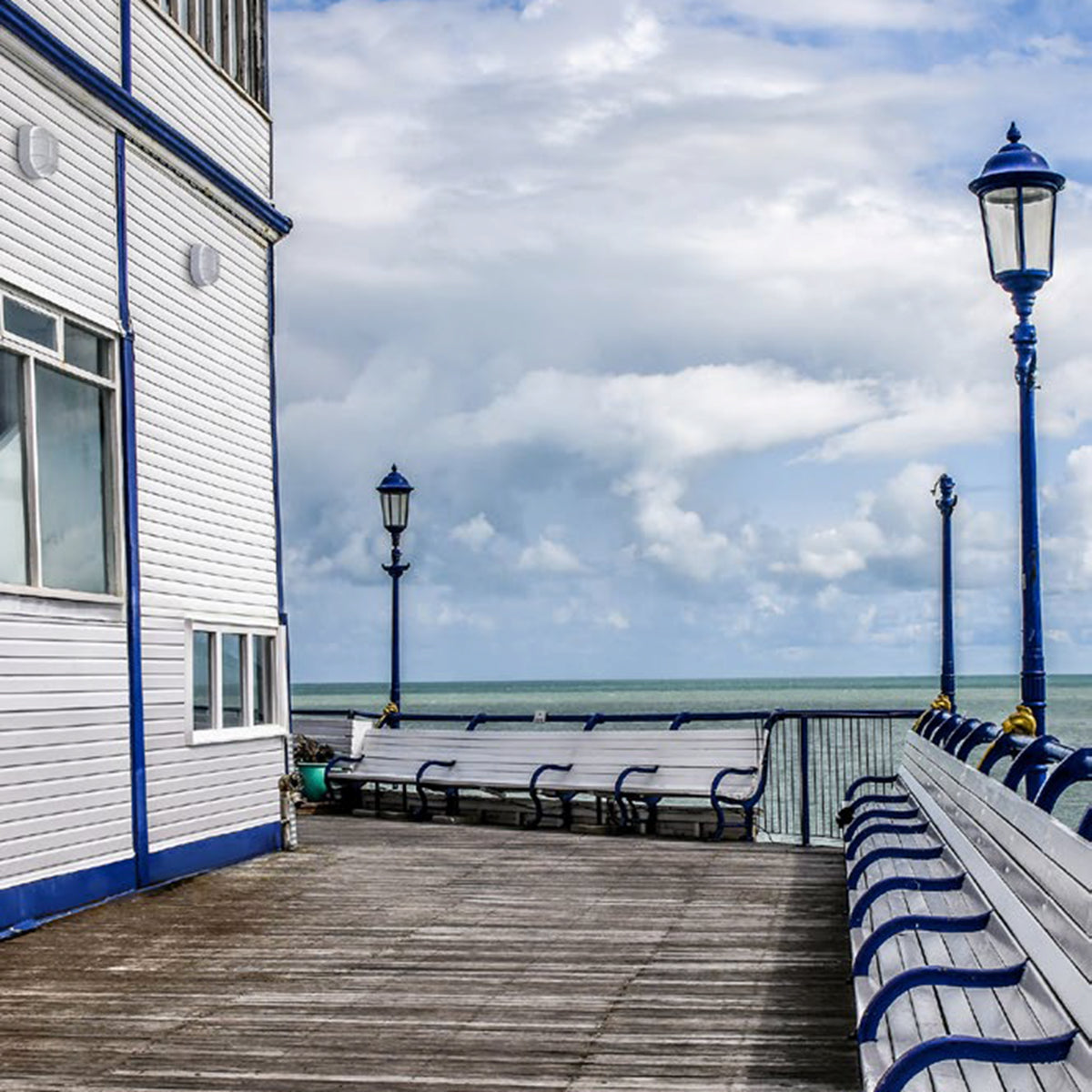

White bulkhead wall lights on a seaside boardwalk building beside a pier with lamp posts
RAB Lighting

20W Selectable RAB Oval LED Bulkhead Wall Sconce

SKU: BULKH20
Sale price$71.00
Regular price

The RAB BULKH20 is a field-adjustable oval LED bulkhead sconce that brings a classic nautical aesthetic to larger waterfront venues, resort exteriors, commercial building entrances, and covered walkways. With selectable wattage and CCT, an integrated photocell, 0-10V dimming, and a 100,000-hour lamp life, it's a set-it-and-forget-it fixture that is fine-tuned at installation and then run for years without another thought.

  • Output up to 2,043 lumens suits larger covered areas, wider entrance canopies, and taller mounting positions
  • 100,000-hour lamp life with 0-10V dimming — exceptional longevity with flexible output control, backed by a full 5-year RAB warranty
  • UL wet location listed with IP65-rated die-cast aluminum housing, integrated grill, and glass lens — built for permanent outdoor exposure
Contractor or Large Project? Request Project Pricing
Ships in 2-3 business days
Free Shipping Over $500

The RAB BULKH20 is a field-adjustable oval LED bulkhead sconce that brings a classic nautical aesthetic to larger waterfront venues, resort exteriors, commercial building entrances, and covered walkways. With selectable wattage and CCT, an integrated photocell, 0-10V dimming, and a 100,000-hour lamp life, it's a set-it-and-forget-it fixture that is fine-tuned at installation and then run for years without another thought.

  • Output up to 2,043 lumens suits larger covered areas, wider entrance canopies, and taller mounting positions
  • 100,000-hour lamp life with 0-10V dimming — exceptional longevity with flexible output control, backed by a full 5-year RAB warranty
  • UL wet location listed with IP65-rated die-cast aluminum housing, integrated grill, and glass lens — built for permanent outdoor exposure

Specs

Wattage(s) 20/16/12W (selectable)
Replaces Wattage(s) 80
Light Output 1,174–2,043 lm
Luminous Efficacy (lm/W) 93.1–115.7 lm/W
Average Lamp Life 100,000 hours (L70, per IES LM-80 / TM-21)
Color Temperature(s) 3000K / 4000K / 5000K (selectable; factory default 5000K)
CRI (Color Accuracy) 82–84 CRI
Dimming Yes
Dimming Range Dims to 10% (0-10V)
Safety Features Mercury-free; UV-free; RoHS-compliant components
Bulb Shape Oval
Light Distribution Pattern BUG Rating: B1 U3 G1 (all wattages) Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Lens Cover Glass lens
Installation Wall mount
Working Environment Wet locations; outdoor
Enclosure Rating IP65
Light Type LED
LED Type Long-life, high-efficacy, discrete, surface-mount LEDs
Input Voltage 120–277V
Driver Type Constant Current, Class 1, 120–277V, 50/60 Hz
Power Factor 20W: 98.5% @ 120V, 93.8% @ 277V; 16W: 98.4% @ 120V, 91.7% @ 277V; 12W: 98.3% @ 120V, 87.4% @ 277V
THD (Total Harmonic Distortion) 20W: 17.7% @ 120V, 13.7% @ 277V; 16W: 17.9% @ 120V, 13.7% @ 277V; 12W: 16.5% @ 120V, 12.1% @ 277V
Surge Protection 2 kV
Input Power Rating 11.18–19.32W
Input Current 20W: 120V 0.20A / 208V 0.10A / 240V 0.09A / 277V 0.08A
Operating Temperature Operating: -40°F to 113°F (-40°C to 45°C)
Housing Material Die-cast aluminum
Housing Color Bronze (Call for white or other colors)
Dimensions 9-11/16" H x 5-13/16" W (face); 5-1/8" depth
Shipping Weight 4.1 lbs
Certification UL Listed – Wet Location; IP65; IESNA LM-79 & LM-80 Tested; RoHS Compliant
Warranty 5-Year Limited (light output, driver performance, paint finish)
Additional Specifications Photocell: 120–277V selectable, on/off (factory default "On"); Gaskets: High-temperature silicone; Finish: Formulated for high durability and long-lasting color; Dim to Off: No; Aux Power Supply: No
Other Specifications Available in Bronze (blank) or White (W) finish; available in Oval (blank) or Round (R) shape per ordering matrix

Details

Spec Value Why It Matters
Light Output 1,174–2,043 lm at up to 102.2 lm/W Highest output in the Bulkhead family — suits larger covered areas and taller mounting positions
Wattage Options 12/16/20W selectable One SKU covers different output needs without separate orders
Color Temp Options 3000K/4000K/5000K selectable Match warm, neutral, or cool light to the application on-site
Lamp Life L70: 100,000 hours Roughly 2x the lifespan of many competing bulkheads — fewer replacements over time
Dimming 0-10V, dims to 10% Integrates with standard dimming systems for energy management and scene control
Enclosure IP65, UL wet location Die-cast aluminum housing with glass lens and silicone gaskets — rated for permanent outdoor exposure
Photocell Integrated selectable on/off Automated dusk-to-dawn operation without external controls



The Classic Bulkhead Form, Done Right

The RAB BULKH20 is the modern version of a classic. It combines the nautical bulkhead form that's been a staple on working waterfronts and coastal properties for decades with modern, field-selectable LED technology, a 100,000-hour lifespan, and RAB's commercial-grade build quality. With the highest output in the Bulkhead family, it is the choice for applications that demand more coverage without sacrificing the classic aesthetic.

  • Classic Nautical Form, Commercial-Grade Build: The characteristic cage-over-glass silhouette of the traditional maritime bulkhead fixture, updated with discrete surface-mount LEDs, a durable powder coat finish, and RAB's five-year no-compromise warranty. The look fits architecturally wherever the classic industrial-maritime aesthetic is the right choice.
  • Integrated Protective Grill with Glass Lens: The die-cast aluminum grill protects the glass lens from impact — and the glass lens transmits light more efficiently and clearly than the polycarbonate lenses used in cheaper bulkheads, which yellow and crack over time.
  • Selectable Wattage and Color Temperature: Field-select 12W, 16W, or 20W and choose 3000K, 4000K, or 5000K at installation — one SKU covers multiple applications without separate orders.
  • L70: 100,000-Hour Lamp Life: At roughly twice the lifespan of many lower-cost bulkheads, this fixture means fewer replacements, fewer labor calls, and lower long-term cost — especially meaningful across large numbers of fixtures on commercial or multi-unit properties.
  • 0-10V Dimming: Dims to 10% for integration with standard dimming controls — useful for venues that shift between full-brightness operation and ambient settings across different times of day or evening service.
  • UL Wet Location Listed: Rated for exposed outdoor installation in rain, salt air, and high-humidity environments. Tested to -40°F for cold-climate applications.
  • Integrated Selectable Photocell: Factory-installed dusk-to-dawn photocell operates automatically without external controls or additional wiring, with a selectable on/off switch for manual override.
  • 5-Year RAB Warranty: Full manufacturer coverage on light output, driver performance, and paint finish — purchased through ELEDLights as an authorized RAB dealer.



Ideal Applications

  1. Larger Waterfront Restaurants & Outdoor Dining: The classic nautical cage form suits marina-adjacent and coastal dining environments naturally — at up to 2,043 lumens, it covers larger covered patio areas and wider dining terraces with ease.
  2. Marina & Boatyard Facilities: IP65 and UL wet location ratings handle the salt air, moisture, and impact exposure of working marine environments where fixture appearance and durability both matter.
  3. Resort & Hotel Exteriors: Higher output and 0-10V dimming suit hotel entry canopies, porte-cochères, and resort pathways where lighting needs to shift between full brightness and ambient levels across the course of an evening.
  4. Primary Commercial Building Entrances: Up to 2,043 lumens handles large entrance canopies and taller mounting positions at main building entries where full coverage and fixture presence both matter.
  5. Covered Parking Canopies & Carports: Higher output and photocell automation suit covered parking structures where reliable, hands-off illumination at adequate levels is the primary requirement.
  6. Covered Walkways & Breezeways: IP65 and wet location rating handle exposure in covered but not fully enclosed outdoor corridors — 0-10V dimming allows output to dial back during low-traffic periods without a separate control device.
