30W Solar LED Billboard Uplight, Bi-Facial Panel

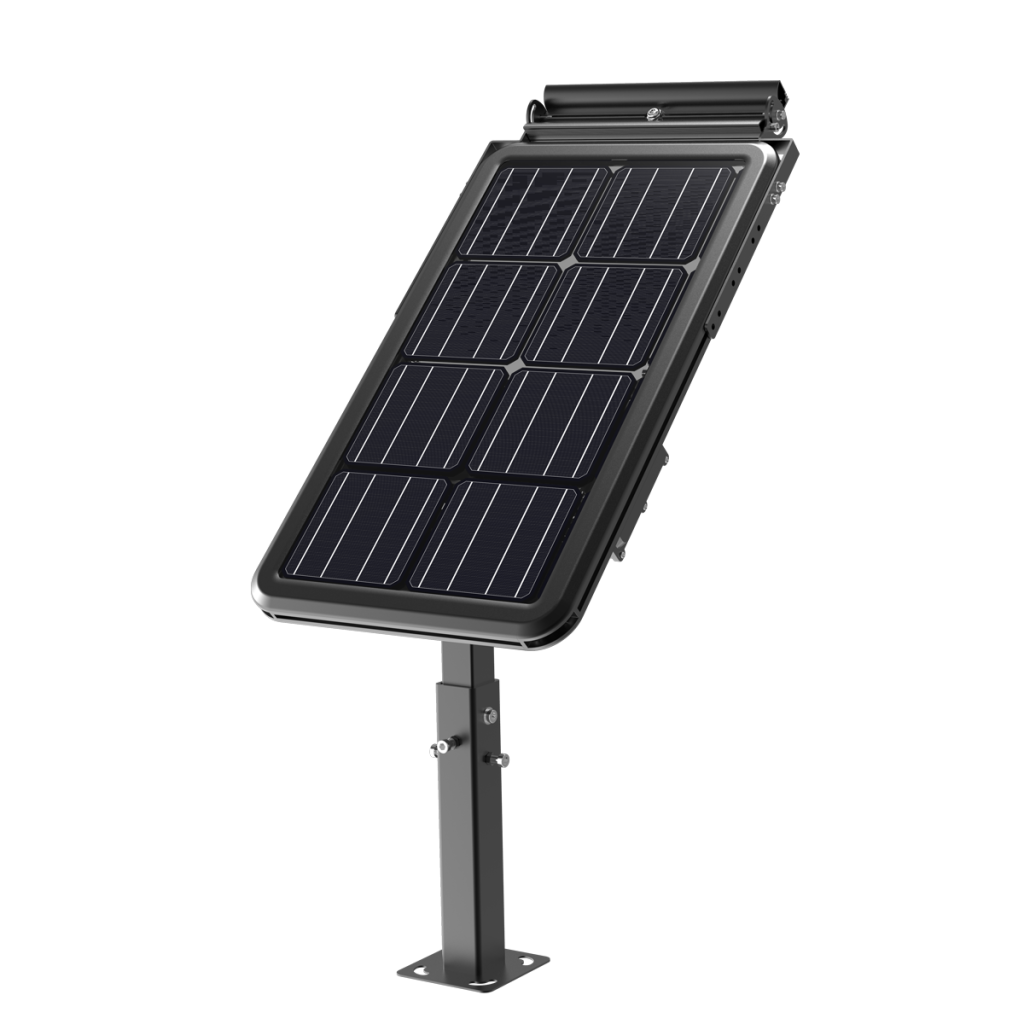

Solar LED billboard uplight with a tilted bi-facial solar panel on an adjustable ground-mount post

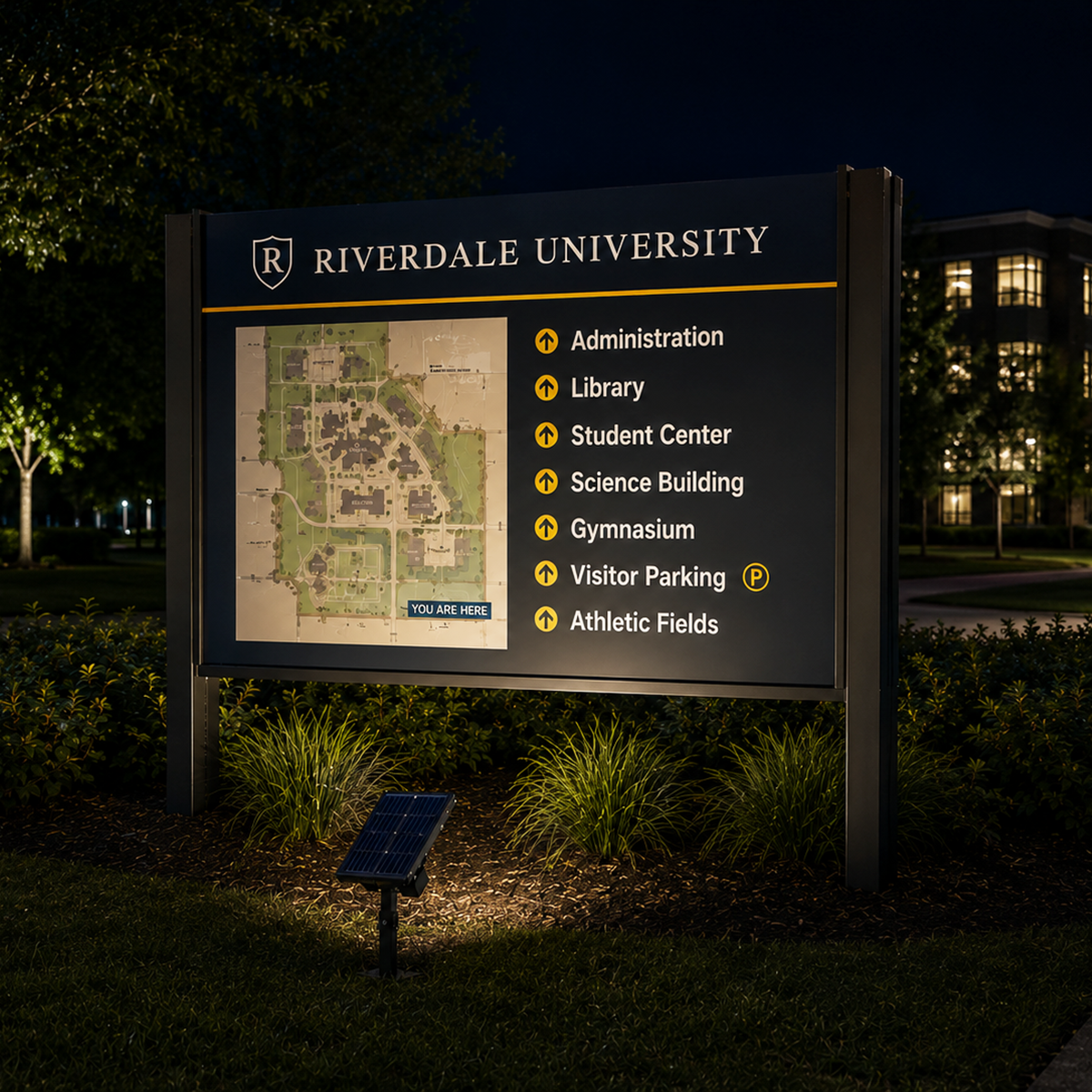

University campus directory sign lit at night by a ground-mounted solar LED billboard uplight

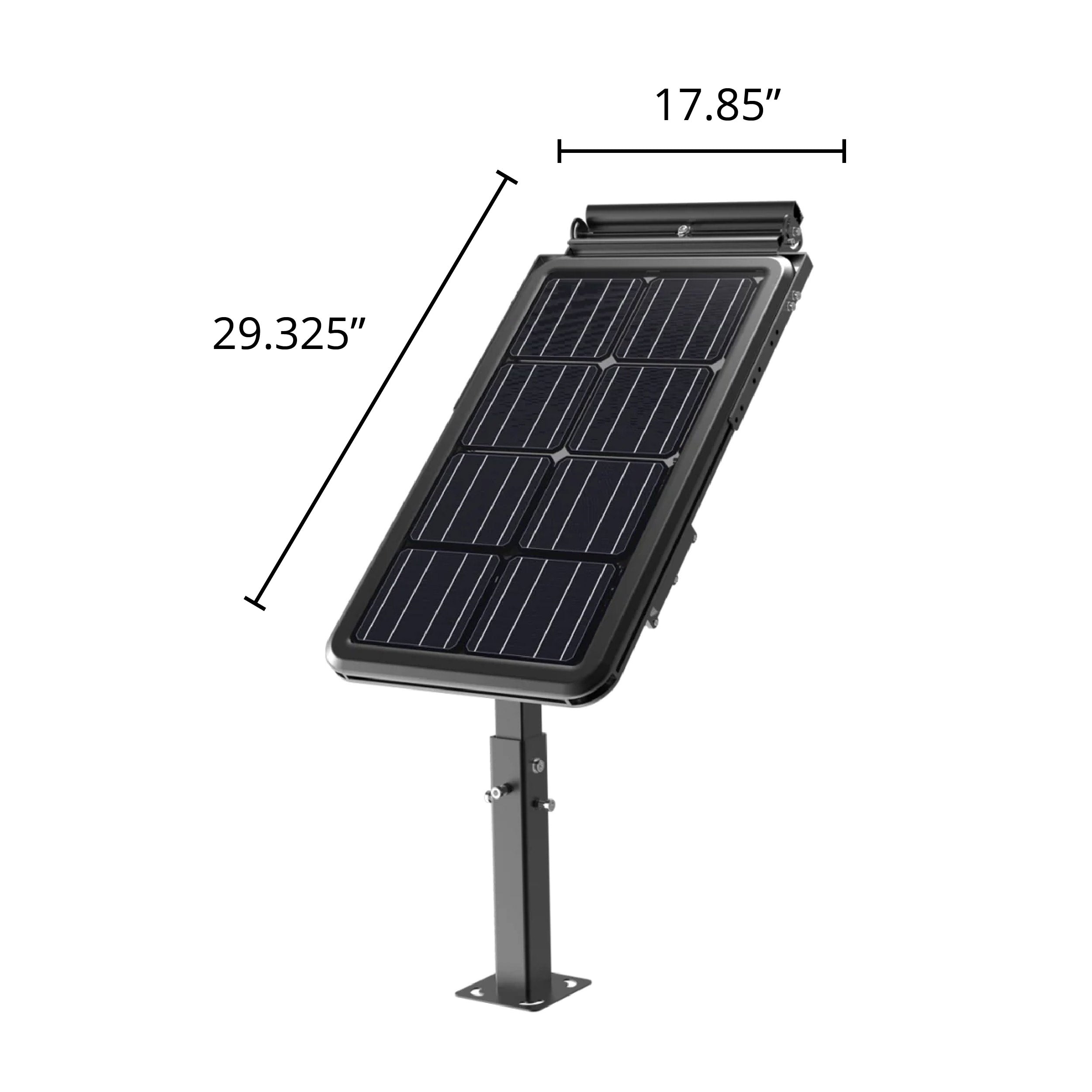

Solar LED billboard uplight dimensions: solar panel 29.325 in long by 17.85 in wide

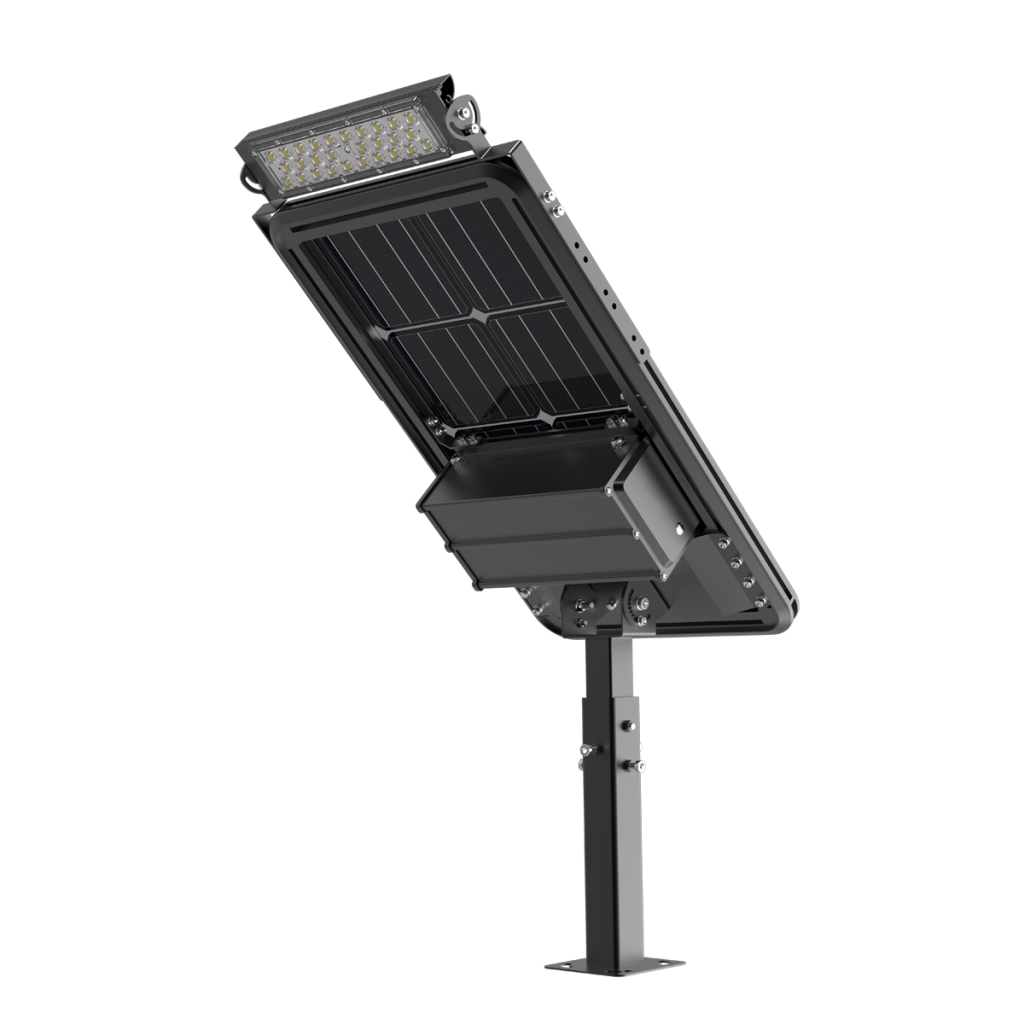

Back of the solar LED billboard uplight showing the LED light head above the solar panel and battery box

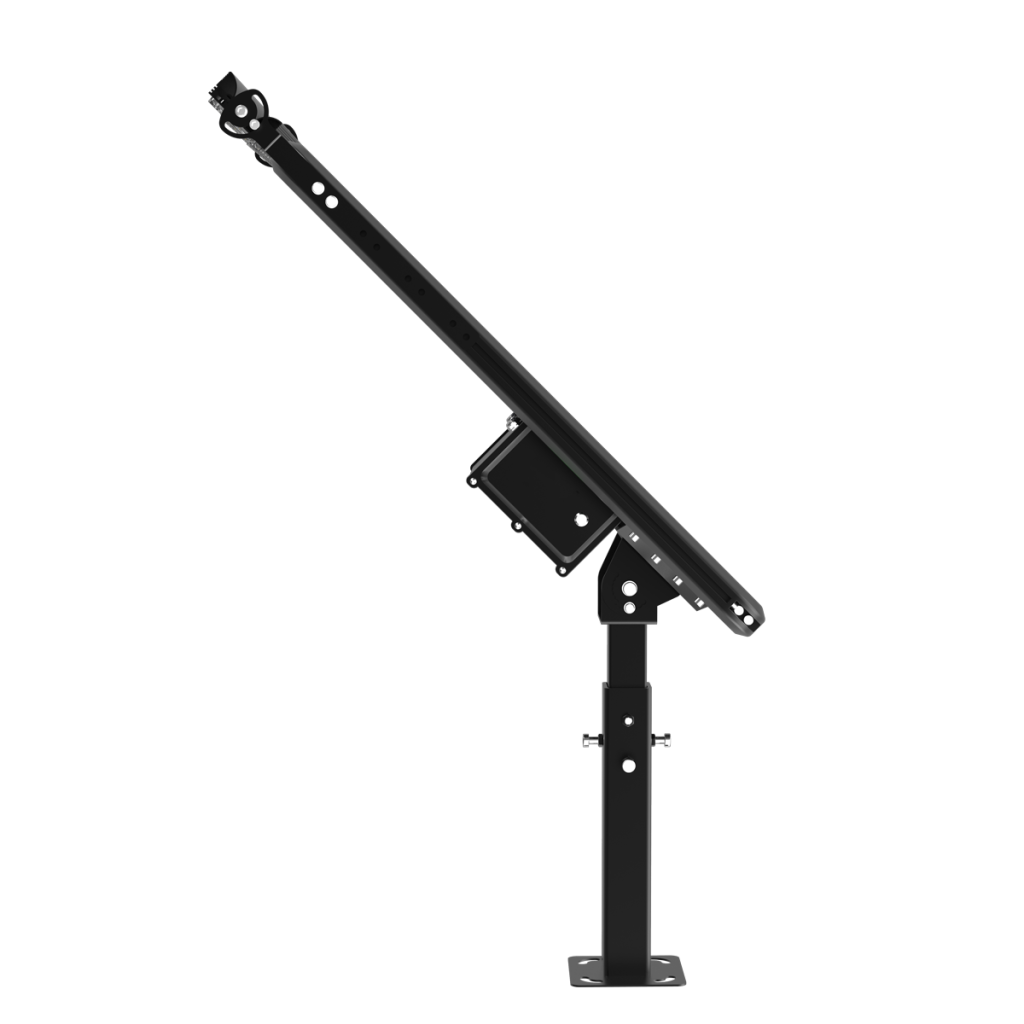

Side view of the solar LED billboard uplight showing the adjustable tilt bracket and mounting post
ELEDLights

30W Solar LED Billboard Uplight, Bi-Facial Panel

SKU: SOLARSBD3040
Sale price$524.95
Regular price$799.95
Save $275.00 (34%)

This 30W solar LED ground-mount uplight automates lighting for full-size billboards and large monument signs at zero ongoing energy cost, with a bi-facial solar panel and optional split-kit mounting that solve the sun-exposure problems smaller sign lights can't.

  • Higher-powered output draws attention to larger signs and billboards, delivering 6,000 lumens across a wide beam built for scale that smaller sign lights can't match
  • Wide Type III beam and adjustable height and angle deliver even, shadow-free coverage across large or textured sign faces, so a passerby sees a clean, legible sign instead of a jumble of shadows and dark patches
  • Optional split kit separates the light from the panel and battery by up to 19.6 ft — mount the panel in full sun even when the sign itself sits in shade, solving a sun-exposure problem other sign lights can't
Free Shipping Over $500

This 30W solar LED ground-mount uplight automates lighting for full-size billboards and large monument signs at zero ongoing energy cost, with a bi-facial solar panel and optional split-kit mounting that solve the sun-exposure problems smaller sign lights can't.

  • Higher-powered output draws attention to larger signs and billboards, delivering 6,000 lumens across a wide beam built for scale that smaller sign lights can't match
  • Wide Type III beam and adjustable height and angle deliver even, shadow-free coverage across large or textured sign faces, so a passerby sees a clean, legible sign instead of a jumble of shadows and dark patches
  • Optional split kit separates the light from the panel and battery by up to 19.6 ft — mount the panel in full sun even when the sign itself sits in shade, solving a sun-exposure problem other sign lights can't

Specs

Wattage(s) 30W
Replaces Wattage(s) 125W
Light Output 6,000 lumens
Luminous Efficacy (lm/W) 200 lm/W
Battery Lithium Ion, 360Wh (12V/30Ah)
Solar Panel Type Bi-Facial Mono-Crystalline Solar Panel
Solar Panel Wattage 18V/50W
Solar Charge Controller MPPT
Run Time Timed Control: 1-2 days*
Operation Method Default Time Control Mode:
First Hour - 100% Brightness
2nd Hour - 80% Brightness
3rd-4th Hours - 60% Brightness
5th Hour Till Dawn - 20% Brightness
Average Lamp Life L70: 50,000 hours
Color Temperature(s) 4000K
CRI (Color Accuracy) 70
Dimming Timer Dimming
Charge Time 6-7 hours*
Light Distribution Pattern Type III Learn More
×

Light Distribution Options

Type II Beam

Throws a wide beam with significant side spread. Well suited for places like paths, walkways, or narrow side-streets.

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Enclosure Rating IP65, IK08
LED Type LED 5050
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Battery Charging Temperature: 0°C to 45°C (32°F to 113°F)
Housing Material Aluminum Housing, Polycarbonate Optical Lens, Li-ion Battery, Mono-crystalline Solar Panel
Dimensions 29.325" x 17.85" W
Warranty 3 Years
Additional Specifications

*Performance based on ideal conditions - solar lights are heavily affected by sunlight levels, temperatures, snow, dirt, and other conditions.

Details

Ground-Mount Uplighting Built for Wide Monument Signs and Full-Scale Billboards

The solar sign light is built for the signs that smaller fixtures can't handle: full-size billboards, large monument signs, and textured or uneven signs prone to shadows during downlighting. Ground-mounted uplighting minimizes shadows, while a bi-facial solar panel, optional split-kit mounting, and a wide Type III beam make this the fixture built specifically for billboard-scale illumination.

  • Higher-Powered Output for Larger Signs: Delivers 6,000 lumens across a wide beam built for scale that smaller sign lights can't match — the output needed to draw attention to a full-size billboard or large monument sign, not just a storefront sign.
  • Shadow-Free Coverage for a Clean and Readable Sign: Textured or uneven sign surfaces often shadow badly under standard downlighting, turning legible text into a jumble of dark patches. This light's wide Type III beam, combined with height and angle adjustment, delivers even coverage across the full sign face from below — so a passerby sees a clean, readable sign instead of shadows.
  • No Trenching, No Utility Bill: The integrated solar panel and battery eliminate the cost of trenching or running conduit to a billboard or monument sign location — mount it, let it charge, and it runs at zero ongoing electricity cost.
  • Mount the Panel Where the Sun Actually Is: An optional split kit (sold separately) separates the light fixture from the panel and battery by up to 19.6 ft — solving a sun-exposure problem other sign lights can't, where a sign sits in shade but a sunny spot nearby goes unused.
  • Captures Sun From Both Sides: A bi-facial mono-crystalline panel captures reflected light in addition to direct sun, delivering more reliable charging in installations where the panel can't be perfectly oriented toward the sun — including many ground-mount and north-facing sign locations.
  • Intelligent Timed Dimming: Delivers full brightness during the first hour after dusk, when visibility matters most, then steps down through the night to extend runtime on a single charge.
  • Rugged, Weather-Resistant Construction: Aluminum housing with a polycarbonate optical lens is rated IP65 and IK08, standing up to rain, dust, and impact in permanent outdoor installations.
  • 3-Year Warranty: Full coverage backed directly by our US-based team.



Ideal Applications

  1. Full-Size Highway Billboards: Wide Type III beam and 6,000-lumen output deliver the coverage a full-scale billboard requires, without the cost of trenching power to a remote highway location.

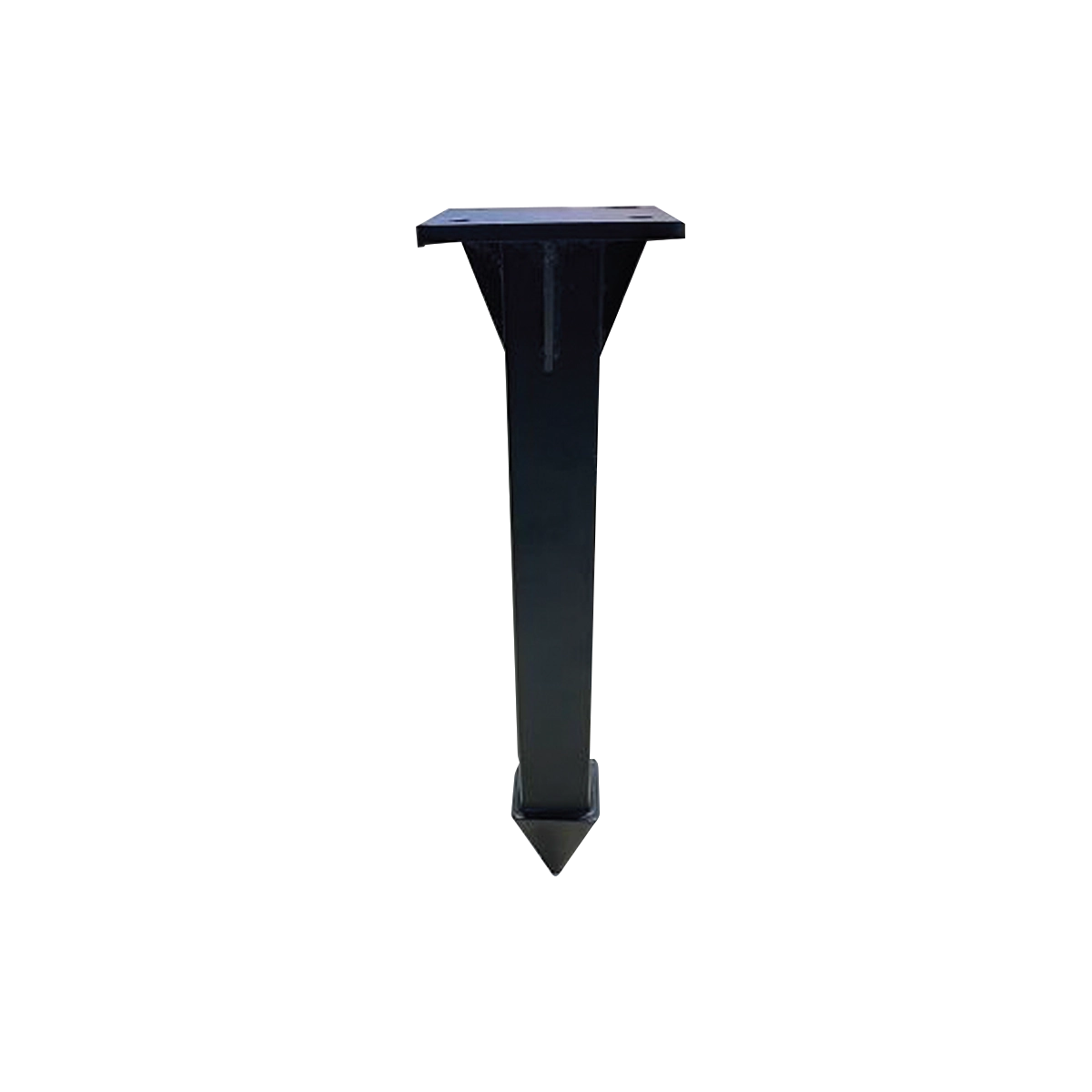

  2. Large Monument & Wayfinding Signs: Ground-mount uplighting via the optional ground spike accessory illuminates monument signs at commercial, institutional, and community entrances evenly from below.
  3. Textured or Uneven Sign Surfaces: Uplighting eliminates the shadowing that standard downlights create on brick, stone, or textured sign faces, keeping text and graphics legible.
  4. North-Facing Signs with Limited Sun: The bi-facial panel and optional split-kit mounting together solve the charging challenges of signs that don't get consistent direct sun exposure.
  5. Park & Campus Directories: Off-grid operation suits directory signs and wayfinding displays across parks and campuses where grid power isn't practical to extend.
  6. Temporary Construction & Development Signage: Self-contained, off-grid design makes this a practical choice for construction notices and development signage that needs real illumination without permanent infrastructure.

Note: for smaller signs where a more cost-effective solution is preferred, or for continuous façade wash lighting requiring maximum color accuracy, our SOLARSBB and SOLARSBA may be a better fit. For pedestrian-facing installations needing glare control and a warmer color temperature, consider the SOLARSBC series.



Why Buy Commercial Grade?

Cheap solar ground spotlights are easy to find online. Here's what separates this commercial-grade billboard uplight from the typical marketplace alternative.

This Fixture Typical Marketplace Import
Solar Panel Bi-facial — captures reflected light in addition to direct sun Standard mono-facial — direct sun exposure only, slower charging
Mounting Flexibility Optional split kit separates light from panel by up to 19.6 ft Fixed, integrated design — no separation option
Beam Distribution Wide Type III — engineered for full billboard and monument coverage Often narrow spotlight beam — uneven coverage on large signs
Enclosure Rating IP65 + IK08 — weatherproof and impact-resistant Varies, often IP65 with no IK rating — prone to breaking if struck by landscapers or pedestrians
Warranty 3-year warranty Varies

A billboard or monument sign is a long-term investment — the light illuminating it should be too. This fixture is built to keep a full-size sign lit reliably, night after night, for years.



ELEDLights Stands Behind It

  • 3-Year Warranty: Full manufacturer coverage backed directly by ELEDLights.
  • US-based support Monday–Friday, 8am–8pm EST — call, text, or email a real person
  • In stock, ships fast straight from our U.S. warehouses
